Solved FreeBSD-13.0-RELEASE-amd64-KDE-Plasma (2021-05-22)

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

Spun off from <https://forums.FreeBSD.org/threads/freebsd-kommunity-edition.78594/post-513391>, thanks in particular to:
General comments and questions

hald_enable="YES"
  • can be removed from /etc/rc.conf
HAL is retired.

I'm curious about the 311 M given to the EFI system partition, compared to:
  • mine (200 M, which might have been a default for an installation of -CURRENT in late 2019)
  • the FreeBSD-provided image for 13.0-RELEASE (33 M).
FreeBSD-13.0-RELEASE-amd64-KDE-Plasma.vdi (converted from FreeBSD-13.0-RELEASE-amd64-KDE-Plasma.img) in VirtualBox 6.1.22:

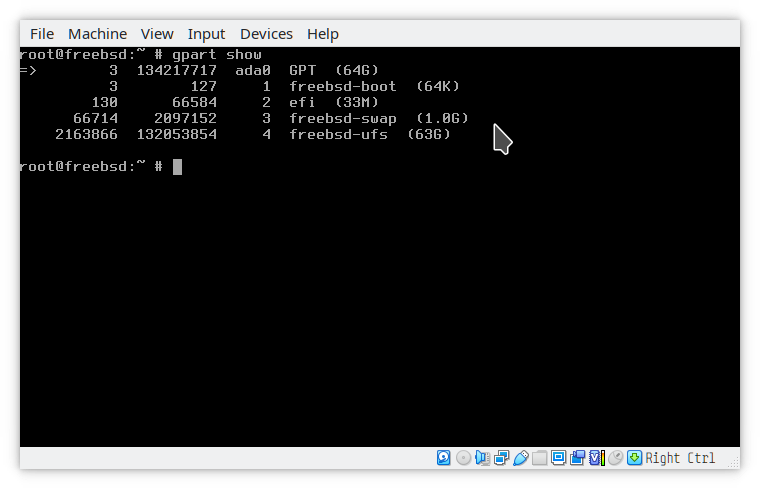

FreeBSD-13.0-RELEASE-amd64.vhd from <https://download.freebsd.org/ftp/releases/VM-IMAGES/13.0-RELEASE/amd64/Latest/>:

I'd give much more than 2 G to freebsd-swap. This is contentious so ▶ over to Swap battle stories for discussion.

For consistency: consider having freebsd-boot, efi and freebsd-swap at partitions 1, 2 and 3.

Last but not least: for various reasons, I'd like to see ZFS instead of UFS.

Thanks again to Samuel Venable!


Samuel Venable

Active Member

Reaction score: 116
Messages: 152

Spun off from <https://forums.FreeBSD.org/threads/freebsd-kommunity-edition.78594/post-513391>, thanks in particular to:
General comments and questions

hald_enable="YES"
  • can be removed from /etc/rc.conf
HAL is retired.

I'm curious about the 311 M given to the EFI system partition, compared to:
  • mine (200 M, which might have been a default for an installation of -CURRENT in late 2019)
  • the FreeBSD-provided image for 13.0-RELEASE (33 M).

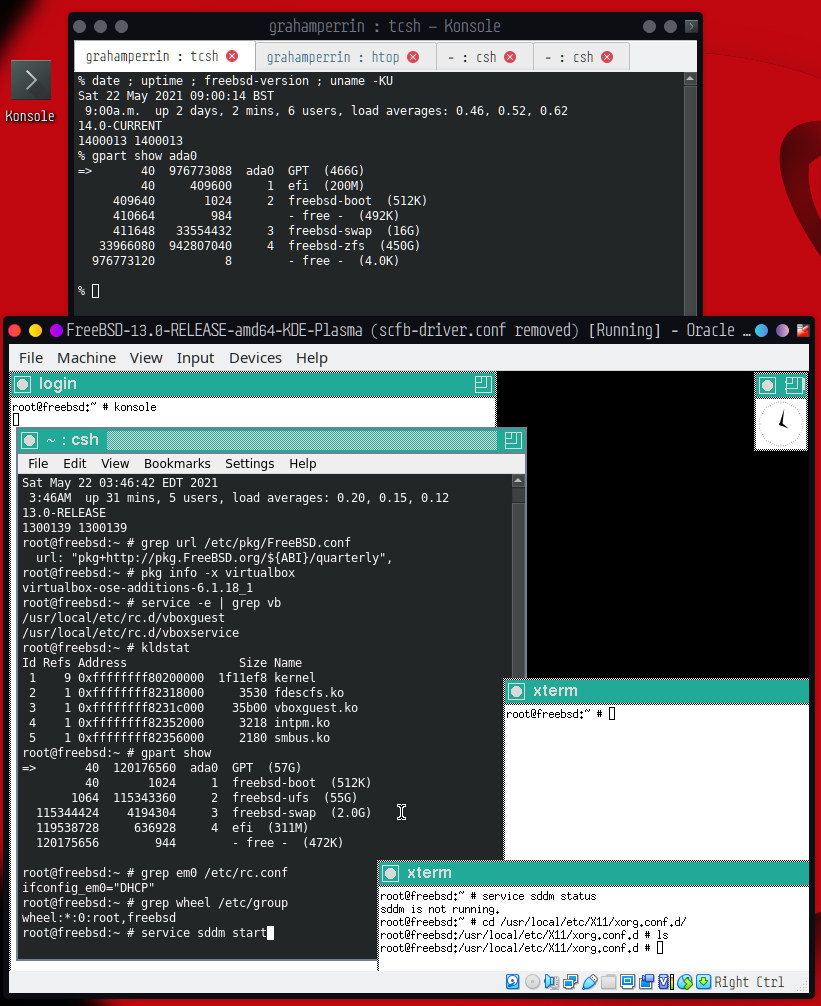

FreeBSD-13.0-RELEASE-amd64-KDE-Plasma.vdi (converted from FreeBSD-13.0-RELEASE-amd64-KDE-Plasma.img) in VirtualBox 6.1.22:

View attachment 9929

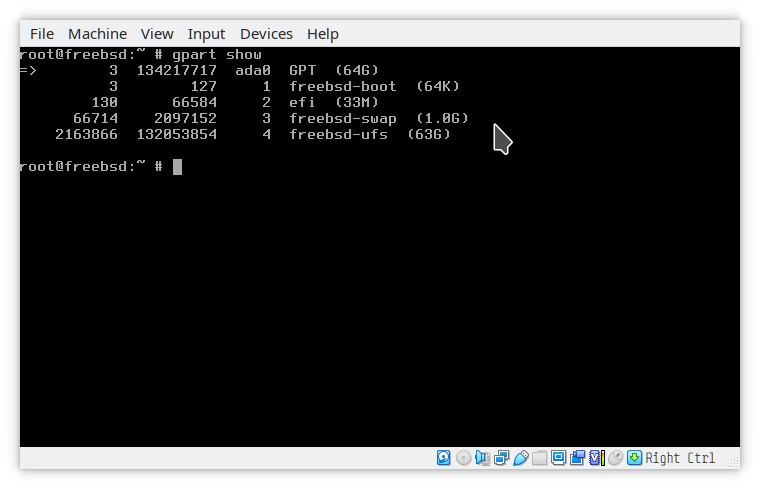

FreeBSD-13.0-RELEASE-amd64.vhd from <https://download.freebsd.org/ftp/releases/VM-IMAGES/13.0-RELEASE/amd64/Latest/>:
View attachment 9930
I'd give much more than 2 G to freebsd-swap. This is contentious so ▶ over to Swap battle stories for discussion.

For consistency: consider having freebsd-boot, efi and freebsd-swap at partitions 1, 2 and 3.

Last but not least: for various reasons, I'd like to see ZFS instead of UFS.

Thanks again to Samuel Venable!
Were you able to figure out why sddm and thus a KDE session wasn't starting? If you haven't, I'd like to help debug this. I forgot to mention the non-root username is just "freebsd".

Additionally, I just have more experience using ufs from just the order at which I tried things when trying out FreeBSD for the first time. I remember reading here you can't just simply dd a zfs like you can a ufs, so I'll be looking into the addtional steps involved. On top of needing more swap space, which means I'm going to have to redo this from scratch. It's no biggie, since I like getting practice with this.

I'll be making note of all these critiques before publishing the next version. Thank you for your feedback and trying it out! :D

OP
grahamperrin

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

… why sddm and thus a KDE session wasn't starting? …

If I recall correctly:
  • whenever SDDM ran (without crashing) there was nothing more than a black screen
  • I chose to stop or disable the service, to avoid the possibility of things freezing
  • switching from quarterly to latest (then upgrading packages) leads to SDDM and Plasma working normally.
That's not a suitable explanation :-/ so I have VirtualBox snapshots, which I can restore, if required, for diagnosis (but not today – I'll be out of town).

Seamless mode, following an upgrade with latest:



Samuel Venable

Active Member

Reaction score: 116
Messages: 152

lol I had no idea seamless mode was a thing in virtual box! I was considering to buy Paralells on MacOS for this very reason. Thanks for that, in addition to everything else!

OP
grahamperrin

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

After the most recent set of package upgrades:
  • SDDM continues to work
  • the Plasma desktop fails to appear (after the splash screen, blackness).
<https://www.freshports.org/x11/libX11/#history>? I wonder.

When I try User Session in lieu of Plasma (X11), I'm very quickly returned to the SDDM screen (without appearance of any xterm window).


Samuel Venable

Active Member

Reaction score: 116
Messages: 152

For the next one i release, I'll make sure it will have the default driver in use without configuring a different one; this should hopefully eliminate the issues you mentioned, as well as apply your critiques.

OP
grahamperrin

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

Thanks.

I'm puzzled by what was in the snapshot working, then (today) not working …


Samuel Venable

Active Member

Reaction score: 116
Messages: 152

Since I've never done this before with a zfs it might take a little longer than i expected, if i had used ufs I technically would've been done right now.

OP
grahamperrin

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

… (after the Plasma splash screen, blackness). Weird.

Random feedback. I restored from a snapshot that was associated with those symptoms, encountered a kernel panic (expected; not an issue with the distribution), updated things, got beyond the splash screen to a normal deskop ☑



I say random because there's an occasional sense of randomness in and around this topic:



Samuel Venable

Active Member

Reaction score: 116
Messages: 152

I updated the image to a vdi virtual box image by default:


Be aware I still have quite a bit of reading up to do on how to manage this with a working zfs so all we have short of your critiques is a ufs for now. But the rest you mentioned is up and running as you wanted afaik.

You will need to enable EFI boot in your virtual machine, the rest should work from there.

I'm not sure why, but this time around I somehow managed to break what initially was perfectly working wifi. After putting my ssid and psk in wpa_supplicant.conf and and setting up my rc.conf accordingly, there seems to be absolutely nothing I can do to get it working with my wireless network adapter anymore.

I'm hoping this is just my firewall blocking it and perfectly normal behavior and is easily correctable for anyone who knows what they are doing here better than I do. Also for some odd reason shutting down the virtual machine does not work the normal way. Shutting down by the guest OS interface or by the host OS Virtual Box menu, it will stall indefinitely without ever shutting down, thus forcing you to power off by closing the VM without sending a shutdown signal. These two issues I'm sure are correctable but I don't have all the time in the world to be concerned with it.

OP
grahamperrin

grahamperrin

Daemon

Reaction score: 516
Messages: 1,684

Thanks! ▶
