Solved print/pdfarranger

OP
M

MasterOne

Active Member

Reaction score: 25
Messages: 193

Port compiles fine and runs for me.

Here are the port files: https://codeberg.org/Alexander88207/FreeBSD-Ports/src/branch/main/print/pdfarranger

Before compiling it, install the dependencies using pkg install devel/py-python-distutils-extra intltool gettext devel/py-dateutil textproc/py-pikepdf to prevent mixing packages with ports.

and for image support (Optional) install py-img2pdf.

Please test it and let me know if something is not working or missing!

If you think everything works as expected i will submit it.

View attachment 9958
Super! But I'm unable to test it because I'm not on FreeBSD yet (still in the preparation phase to move from Arch Linux to FreeBSD 13).

Can anyone else who has been participating in this thread please have a look and give feedback to Alexander88207?


grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

… Please test …

The virtual machine that I chose for testing crashed overnight (FreeBSD-provided disk image, swap partition too small). This morning I chose to use pkg to install devel/llvm10. Should speed things up.

PS (off topic), oh:

I reset the machine, repaired the UFS file system for the nth time, aimed to test.

It was necessary to remove some packages, then delete and reinstall llvm10, I was surprised by files missing at the time of deletion:


grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

Alexander88207

Aspiring Daemon

Reaction score: 492
Messages: 708

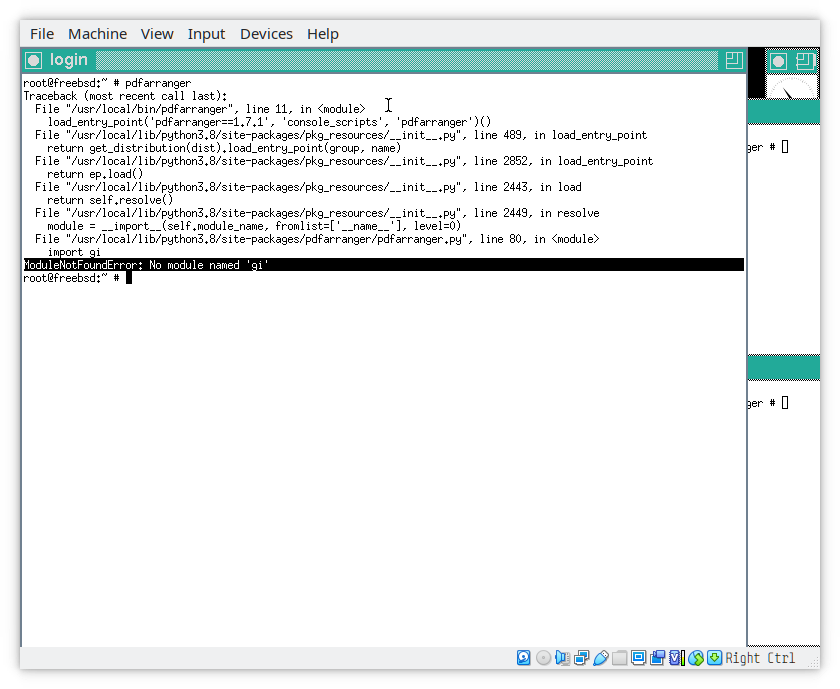

ModuleNotFoundError: No module named 'gi'
View attachment 9966
Does <https://github.com/pdfarranger/pdfa...ebcf4d07bf978fb1f8ac04c6bf87428ed5106870f5R64> help?

After installing devel/py-gobject3, pdfarranger failed with:

ValueError: Namespace Gtk not available

After installing x11-toolkits/gtk30 a different error, which prompted me to install graphics/poppler-glib, after which pdfarranger ran (but I did not test beyond a simple start of the application).

Hello,

thank you for your testing. I have updated the port files accordingly.


grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

Test environment:
Code:
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # pkg info -x kde5
kde5-5.21.5.21.04.1
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # pkg info -x poudriere
poudriere-devel-3.3.99.20210521
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # poudriere jail -i -j 13
Jail name:         13
Jail version:      13.0-RELEASE-p1
Jail arch:         amd64
Jail method:       http
Jail mount:        /usr/local/poudriere/jails/13
Jail fs:           zroot/poudriere/jails/13
Jail updated:      2021-05-27 12:57:17
Jail pkgbase:      disabled
root@mowa219-gjp4-vm-freebsd-13-zfs:~ #

poudriere bulk -b latest -j 13 print/pdfarranger

After the build:

Code:
# freebsd-version -kru
13.0-RELEASE-p1
13.0-RELEASE-p1
13.0-RELEASE-p1
# pkg install -y pdfarranger
Updating FreeBSD repository catalogue...
FreeBSD repository is up to date.
Updating poudriere repository catalogue...
poudriere repository is up to date.
All repositories are up to date.
Checking integrity... done (0 conflicting)
The following 11 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
        libraqm: 0.7.1 [FreeBSD]
        pdfarranger: 1.7.1 [poudriere]
        py38-dateutil: 2.8.1 [poudriere]
        py38-lxml: 4.6.3 [poudriere]
        py38-olefile: 0.46 [poudriere]
        py38-pikepdf: 2.12.0 [poudriere]
        py38-pillow: 8.2.0 [poudriere]
        py38-tkinter: 3.8.10_6 [poudriere]
        qpdf: 10.3.2 [poudriere]
        tcl86: 8.6.11_1 [FreeBSD]
        tk86: 8.6.11_2 [FreeBSD]

Number of packages to be installed: 11

The process will require 35 MiB more space.
[1/11] Installing tcl86-8.6.11_1...
[1/11] Extracting tcl86-8.6.11_1: 100%
[2/11] Installing tk86-8.6.11_2...
[2/11] Extracting tk86-8.6.11_2: 100%
[3/11] Installing py38-tkinter-3.8.10_6...
[3/11] Extracting py38-tkinter-3.8.10_6: 100%
[4/11] Installing libraqm-0.7.1...
[4/11] Extracting libraqm-0.7.1: 100%
[5/11] Installing py38-olefile-0.46...
[5/11] Extracting py38-olefile-0.46: 100%
[6/11] Installing qpdf-10.3.2...
[6/11] Extracting qpdf-10.3.2: 100%
[7/11] Installing py38-pillow-8.2.0...
[7/11] Extracting py38-pillow-8.2.0: 100%
[8/11] Installing py38-lxml-4.6.3...
[8/11] Extracting py38-lxml-4.6.3: 100%
[9/11] Installing py38-pikepdf-2.12.0...
[9/11] Extracting py38-pikepdf-2.12.0: 100%
[10/11] Installing py38-dateutil-2.8.1...
[10/11] Extracting py38-dateutil-2.8.1: 100%
[11/11] Installing pdfarranger-1.7.1...
[11/11] Extracting pdfarranger-1.7.1: 100%
# exit
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # exit
logout
grahamperrin@mowa219-gjp4-vm-freebsd-13-zfs:~ % pdfarranger
grahamperrin@mowa219-gjp4-vm-freebsd-13-zfs:~ %

– success (the application ran).


Alexander88207

Aspiring Daemon

Reaction score: 492
Messages: 708

Test environment:
Code:
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # pkg info -x kde5
kde5-5.21.5.21.04.1
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # pkg info -x poudriere
poudriere-devel-3.3.99.20210521
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # poudriere jail -i -j 13
Jail name:         13
Jail version:      13.0-RELEASE-p1
Jail arch:         amd64
Jail method:       http
Jail mount:        /usr/local/poudriere/jails/13
Jail fs:           zroot/poudriere/jails/13
Jail updated:      2021-05-27 12:57:17
Jail pkgbase:      disabled
root@mowa219-gjp4-vm-freebsd-13-zfs:~ #

poudriere bulk -b latest -j 13 print/pdfarranger

After the build:

Code:
# freebsd-version -kru
13.0-RELEASE-p1
13.0-RELEASE-p1
13.0-RELEASE-p1
# pkg install -y pdfarranger
Updating FreeBSD repository catalogue...
FreeBSD repository is up to date.
Updating poudriere repository catalogue...
poudriere repository is up to date.
All repositories are up to date.
Checking integrity... done (0 conflicting)
The following 11 package(s) will be affected (of 0 checked):

New packages to be INSTALLED:
        libraqm: 0.7.1 [FreeBSD]
        pdfarranger: 1.7.1 [poudriere]
        py38-dateutil: 2.8.1 [poudriere]
        py38-lxml: 4.6.3 [poudriere]
        py38-olefile: 0.46 [poudriere]
        py38-pikepdf: 2.12.0 [poudriere]
        py38-pillow: 8.2.0 [poudriere]
        py38-tkinter: 3.8.10_6 [poudriere]
        qpdf: 10.3.2 [poudriere]
        tcl86: 8.6.11_1 [FreeBSD]
        tk86: 8.6.11_2 [FreeBSD]

Number of packages to be installed: 11

The process will require 35 MiB more space.
[1/11] Installing tcl86-8.6.11_1...
[1/11] Extracting tcl86-8.6.11_1: 100%
[2/11] Installing tk86-8.6.11_2...
[2/11] Extracting tk86-8.6.11_2: 100%
[3/11] Installing py38-tkinter-3.8.10_6...
[3/11] Extracting py38-tkinter-3.8.10_6: 100%
[4/11] Installing libraqm-0.7.1...
[4/11] Extracting libraqm-0.7.1: 100%
[5/11] Installing py38-olefile-0.46...
[5/11] Extracting py38-olefile-0.46: 100%
[6/11] Installing qpdf-10.3.2...
[6/11] Extracting qpdf-10.3.2: 100%
[7/11] Installing py38-pillow-8.2.0...
[7/11] Extracting py38-pillow-8.2.0: 100%
[8/11] Installing py38-lxml-4.6.3...
[8/11] Extracting py38-lxml-4.6.3: 100%
[9/11] Installing py38-pikepdf-2.12.0...
[9/11] Extracting py38-pikepdf-2.12.0: 100%
[10/11] Installing py38-dateutil-2.8.1...
[10/11] Extracting py38-dateutil-2.8.1: 100%
[11/11] Installing pdfarranger-1.7.1...
[11/11] Extracting pdfarranger-1.7.1: 100%
# exit
root@mowa219-gjp4-vm-freebsd-13-zfs:~ # exit
logout
grahamperrin@mowa219-gjp4-vm-freebsd-13-zfs:~ % pdfarranger
grahamperrin@mowa219-gjp4-vm-freebsd-13-zfs:~ %

– success (the application ran).

I was about to make one too but you have saved me time, thank you for the test with poudriere, i will submit the port tonight.


grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

… i will submit the port tonight.

Big thanks!

In parallel: I'm testing the build on a remote computer in a cleaner environment – FreeBSD-14.0-CURRENT-amd64.vhd.xz from <https://download.freebsd.org/ftp/snapshots/VM-IMAGES/14.0-CURRENT/amd64/Latest/>. Screenshot below.

Drafted:



Postscript

Build succeeded, installation (package) succeeded, first run succeeded:

VirtualBox_FreeBSD 14.0-CURRENT_29_05_2021_04_27_12.png


VirtualBox_FreeBSD 14.0-CURRENT_29_05_2021_04_51_19.png


VirtualBox_FreeBSD 14.0-CURRENT_29_05_2021_05_01_33.png


grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

… crashed overnight (FreeBSD-provided disk image, swap partition too small). …

Another problem with a FreeBSD-provided image (after the more thorough test of build and installation of print/pdfarranger):



grahamperrin

Daemon

Reaction score: 680
Messages: 2,150

Alexander88207

Aspiring Daemon

Reaction score: 492
Messages: 708

MasterOne i do have one question since you work with this mostly:

I am about to add an optional option to the port to add image support by adding py-img2pdf as run dependency:

Now it is used so often or by most that it is worth turning it on as default?

OP
M

MasterOne

Active Member

Reaction score: 25
Messages: 193

MasterOne i do have one question since you work with this mostly: I am about to add an optional option to the port to add image support by adding py-img2pdf as run dependency: Now it is used so often or by most that it is worth turning it on as default?
Cool, I didn't even know that PDF Arranger is capable of adding images as pages, which is why I never tried that before. Certainly useful for not having to convert images to PDF before adding to a PDF document, so I'd say it makes sense to turn that option on by default.


Zirias

Son of Beastie

Reaction score: 1,532
Messages: 2,654

If it is really just a runtime dependency for an optional feature, how about not making it a default but instead give a hint in pkg-message?
