Solved Android-Studio FBSD Install Linux Compat for mobile gaming | android development

GoNeFast_01

GoNeFast_01

Step 0 Download Google Android Studio​


https://developer.android.com/studio

Code:
ls ~/Downloads | grep .tar
\

android-studio-panda2-linux.tar.gz

Step 1 Linux Compatibility Requirement​

I am not going to show how to get a compat up and running there's plenty of options... I use debian as that's what Android-Studio suggest I have Debian Trixie

Code:
vi /etc/rc.conf
\

linux_enable="YES"

ls /compat/linux
\

#chroot /compat/linux /bin/bash
#\

sudo chroot /compat/linux /bin/bash
\


Step 2 Extract the Files .tar in Linux Compat​

Code:
sudo mv ~/Downloads/android-studio-panda2-linux.tar.gz /compat/linux/root/Downloads

Code:
sudo ls /compat/linux/root/Downloads
\

android-studio-panda2-linux.tar.gz

Code:
sudo chroot /compat/linux /bin/bash
\

cd /root/Downloads/
\

tar -zxvf ~/Downloads/android-studio-*-linux.tar.gz
\

android-studio/
android-studio/modules/
android-studio/modules/module-descriptors.dat
android-studio/modules/module-descriptors.jar
android-studio/product-info.json
android-studio/plugins/
android-studio/plugins/c/
android-studio/plugins/c/lib/
android-studio/plugins/c/lib/modules/
android-studio/plugins/c/lib/modules/intellij.c.core.jar
android-studio/plugins/c/lib/modules/intellij.c.debugger.jar
android-studio/plugins/c/lib/modules/intellij.c.testing.jar
android-studio/plugins/c/lib/modules/intellij.cidr.modulemap.language.jar
android-studio/plugins/c/lib/c.jar
android-studio/plugins/c/lib/LICENSE.txt
android-studio/plugins/vcs-gitlab/
android-studio/plugins/vcs-gitlab/lib/
android-studio/plugins/vcs-gitlab/lib/modules/
android-studio/plugins/vcs-gitlab/lib/modules/intellij.vcs.gitlab.yaml.jar
android-studio/plugins/vcs-gitlab/lib/modules/intellij.vcs.gitlab.git.jar
android-studio/plugins/vcs-gitlab/lib/vcs-gitlab.jar
android-studio/plugins/Kotlin/
android-studio/plugins/Kotlin/lib/
android-studio/plugins/Kotlin/lib/kotlinc.sam-with-receiver-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/kotlinc.kotlin-compiler-fe10.jar
android-studio/plugins/Kotlin/lib/kotlin-plugin.jar
android-studio/plugins/Kotlin/lib/ehcache.sizeof.jar
android-studio/plugins/Kotlin/lib/kotlinc.compose-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/kotlin-base-jps.jar
android-studio/plugins/Kotlin/lib/vavr.jar
android-studio/plugins/Kotlin/lib/kotlinc.kotlin-dataframe-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/kotlinc.kotlin-compiler-ir.jar
android-studio/plugins/Kotlin/lib/kotlin-plugin-shared.jar
android-studio/plugins/Kotlin/lib/kotlinc.noarg-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/kotlinc.kotlin-jps-common.jar
android-studio/plugins/Kotlin/lib/kotlinc.scripting-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/kotlin-gradle-tooling.jar
android-studio/plugins/Kotlin/lib/kotlinc.allopen-compiler-plugin.jar
android-studio/plugins/Kotlin/lib/completion-ranking-kotlin.jar
android-studio/plugins/Kotlin/lib/kotlinc.js-plain-objects-compiler-plugin.jar
....
android-studio/jbr/legal/jdk.compiler/ASSEMBLY_EXCEPTION
android-studio/jbr/conf/
android-studio/jbr/conf/sound.properties
android-studio/jbr/conf/jaxp.properties
android-studio/jbr/conf/sdp/
android-studio/jbr/conf/sdp/sdp.conf.template
android-studio/jbr/conf/logging.properties
android-studio/jbr/conf/security/
android-studio/jbr/conf/security/java.policy
android-studio/jbr/conf/security/java.security
android-studio/jbr/conf/security/policy/
android-studio/jbr/conf/security/policy/README.txt
android-studio/jbr/conf/security/policy/unlimited/
android-studio/jbr/conf/security/policy/unlimited/default_US_export.policy
android-studio/jbr/conf/security/policy/unlimited/default_local.policy
android-studio/jbr/conf/security/policy/limited/
android-studio/jbr/conf/security/policy/limited/default_US_export.policy
android-studio/jbr/conf/security/policy/limited/default_local.policy
android-studio/jbr/conf/security/policy/limited/exempt_local.policy
android-studio/jbr/conf/management/
android-studio/jbr/conf/management/jmxremote.access
android-studio/jbr/conf/management/jmxremote.password.template
android-studio/jbr/conf/management/management.properties
android-studio/jbr/conf/net.properties

Code:
mv /root/Downloads/android-studio /usr/local/
\

#chown -R $USER:$USER /usr/local/android-studio

Code:
ls /usr/local/android-studio
\

Install-Linux-tar.txt  NOTICE.txt  build.txt  lib      modules  product-info.json
LICENSE.txt            bin         jbr        license  plugins


Step 3 Need to install dependencies​


Code:
sudo chroot /compat/linux /bin/bash
\

apt update
\

apt upgrade
\

apt install libxtst6 libxrender1 libxi6 libfontconfig1 libxext6
\

apt install libgtk-3-0 libxss1 libasound2 libdbus-1-3
\

Step 4 Android-Studio X11 pass​


"Can't connect to X11 window server." This happens because your Debian chroot is isolated and cannot "see" the X11 Unix socket used by FreeBSD.

Code:
sudo chroot /compat/linux /bin/bash
\

mkdir -p /tmp/.X11-unix
\

In gateway or FBSD not in COMPAT

Code:
sudo mount -t nullfs /tmp/.X11-unix /compat/linux/tmp/.X11-unix
\

xhost +local:
\

xhost
\
access control enabled, only authorized clients can connect
LOCAL:

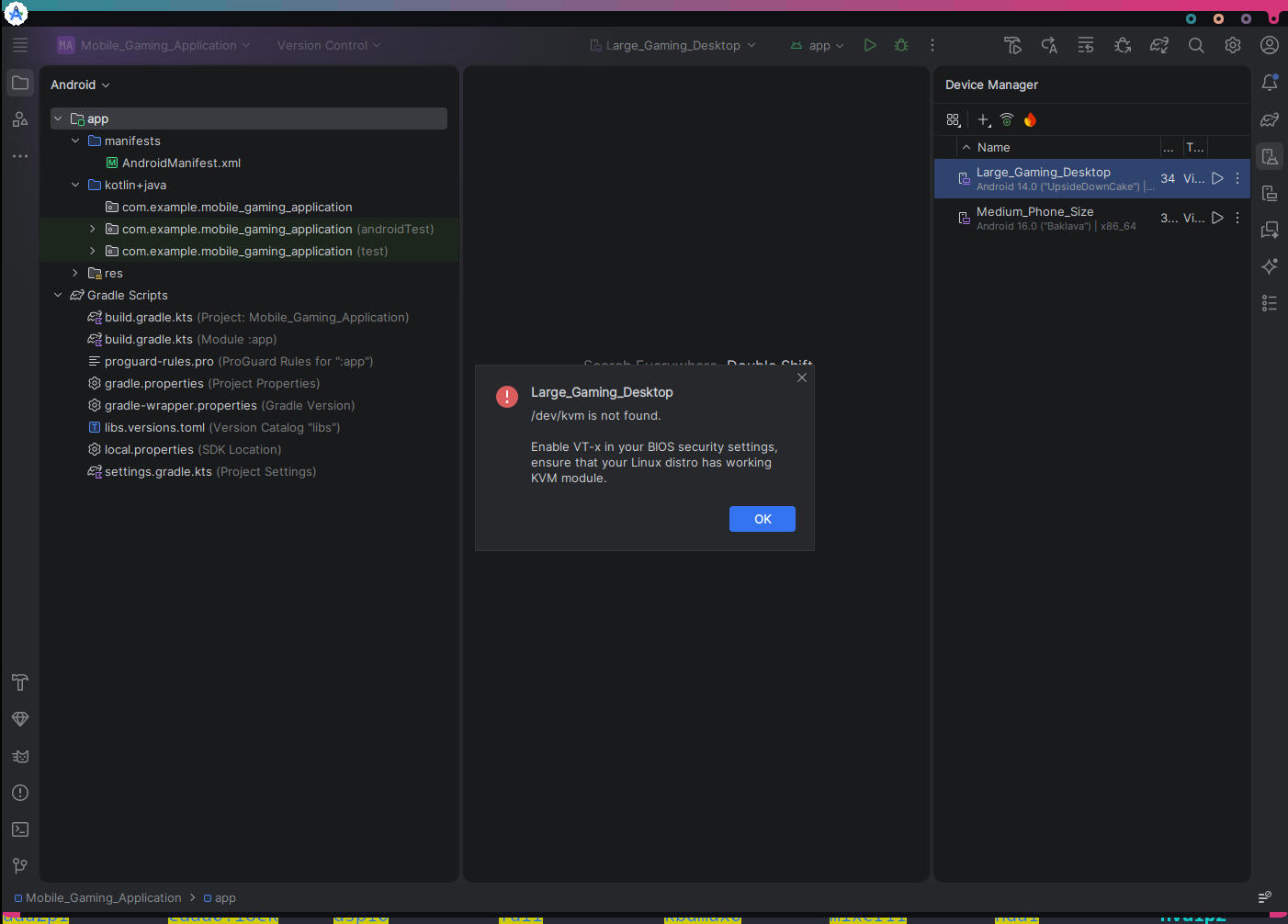

Step 5 Fix KVM error install Qemu​


This does not work on FBSD don't even try...





Step 6 Connect via USB device​

You need this in gateway FBSD if you want to use your android device.

Code:
pkg install android-tools
\

Step 7 Android-studio has ABD-script build in.​

ABD in the Android-Studio is different from ADB in FBSD pkg so you cannot even use.

Code:
sudo chroot /compat/linux /bin/bash
\

mv ~/Android/Sdk/platform-tools/adb ~/Android/Sdk/platform-tools/adb.original
\

Code:
sudo chroot /compat/linux /bin/bash
\

cat > ~/Android/Sdk/platform-tools/adb << 'WRAPPER'
#!/bin/sh

REAL_ADB="/root/Android/Sdk/platform-tools/adb.original"

case "$1" in
    kill-server)
        # Silently ignore
        exit 0
        ;;
    start-server)
        # Pretend it worked
        echo "* daemon already running on port 5037"
        exit 0
        ;;
    server)
        # Block any attempt to start a new server daemon
        echo "* daemon already running on port 5037"
        exit 0
        ;;
    fork-server)
        # Block fork-server too
        echo "* daemon already running on port 5037"
        exit 0
        ;;
    *)
        # For everything else (devices, version, push, pull, shell, etc.)
        # Use the Linux binary as a CLIENT ONLY connecting to the FreeBSD server
        export ADB_SERVER_SOCKET=tcp:127.0.0.1:5037
        export ANDROID_ADB_SERVER_PORT=5037
        exec "$REAL_ADB" "$@"
        ;;
esac
WRAPPER

Step 8 Getting ADB working FBSD so I can plug my android instead of emulated device​

Short story the abd that is in pkg doesn't have network requirement to pick IPv4 which implies it default to ipv6.... Anyways you need to do a hacker work around or compile from port with custom plugin which I did not so I used socat

Code:
adb -a -P 5038 server nodaemon &
\

socat TCP4-LISTEN:5037,bind=127.0.0.1,reuseaddr,fork 'TCP6:[::1]:5038' &
\

#AFTER above plug device and do this command#
adb devices
\

List of devices attached
85drf69c555f9ece        device

Now the issue is that to pass the ADB to the Android-studio directly you need to do some custom config BEFORE you launch the studio.sh.

Code:
sudo chroot /compat/linux /bin/bash
\

#YOU should see the same device as in FBSD (if not Android-studio doesn't see it)
env ADB_SERVER_SOCKET=tcp:127.0.0.1:5037 /root/Android/Sdk/platform-tools/adb devices
\

List of devices attached
85drf69c555f9ece        device


env ADB_SERVER_SOCKET=tcp:127.0.0.1:5037 ANDROID_ADB_SERVER_ADDRESS=127.0.0.1 ANDROID_ADB_SERVER_PORT=5037 /usr/local/android-studio/bin/studio.sh
\

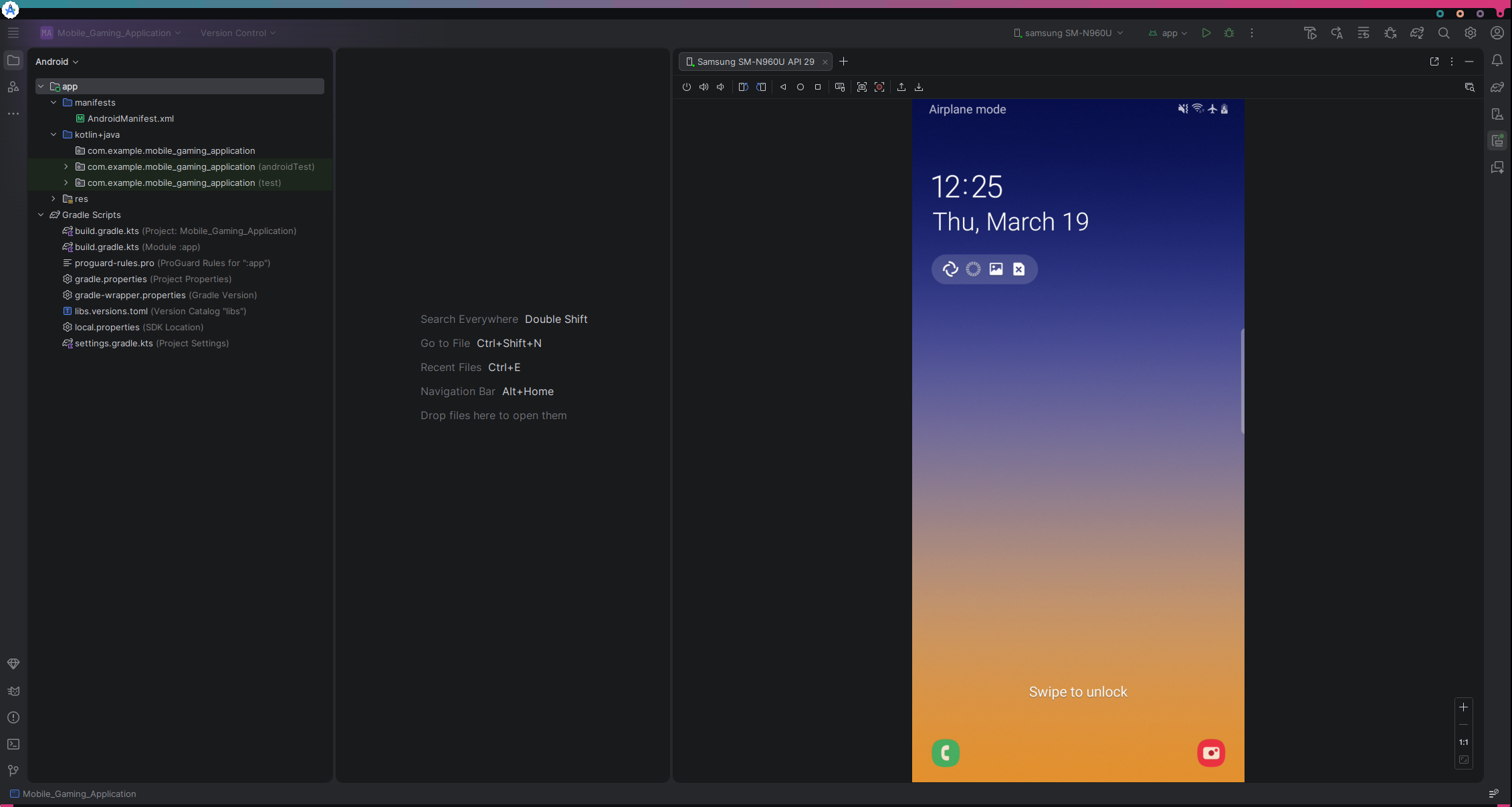

Working environment for development you should see in your X11 environment. IF YOU DO NOT pass the /tmp/.X11 to /compat you will not see the GUI.


Thanks, I'll have to give this a go. I was going to run this over VNC from a Linux box that I have purely for the purposes of running Crashplan, but this looks a lot better.
