ntop rrdtool graphs work with xl0 but not netflow-device

johnblue

johnblue

I have installed ntop from ports and everything seems to be working a-okay. But this is only when ntop's NIC selection is set to the 3com ethernet card xl0. However, when I switch over to the NetFlow-device.2 NIC, the rrdtool graphs under Summary > Network Load completely disappear.

I've been all over the config three or four times and I cannot find where the glitch is at. If I switch back to the xl0 NIC, rrdtool graphs will start being displayed again. Finally, I am getting netflow traffic from the pfsense box and I've confirmed this with tcpdump plus ntop's own web interface.

Any thoughts are welcomed and thanks in advance!

John


Attachments

  • ntop_xl0.JPG
    41.1 KB · Views: 283

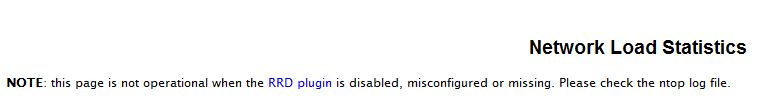

  • ntop_netflow.JPG
    16.7 KB · Views: 273
  • ntop_startup.txt
    7.8 KB · Views: 194
I doesn't like V9 protocol. I swapped it out for V5 and the rrdtool graphs lit up.

*sigh*

Now I need to figure out how to get the google maps to load and I can call it done.
