x server failed to start after upgrading

W

Winson

I was using 13.2-RELEASE and after I upgrade to 13.2-RELEASE-p1 last week I cannot open my x server

the Xorg.0.log
Code:
[    49.405]
X.Org X Server 1.21.1.8
X Protocol Version 11, Revision 0
[    49.405] Current Operating System: FreeBSD Winson 13.2-RELEASE-p1 FreeBSD 13.2-RELEASE-p1 GENERIC amd64
[    49.405]
[    49.405] Current version of pixman: 0.42.2
[    49.405]    Before reporting problems, check [URL]http://wiki.x.org[/URL]
    to make sure that you have the latest version.
[    49.405] Markers: (--) probed, (**) from config file, (==) default setting,
    (++) from command line, (!!) notice, (II) informational,
    (WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[    49.406] (==) Log file: "/var/log/Xorg.0.log", Time: Sat Jul 15 21:36:35 2023
[    49.407] (==) Using config directory: "/usr/local/etc/X11/xorg.conf.d"
[    49.407] (==) Using system config directory "/usr/local/share/X11/xorg.conf.d"
[    49.408] (==) No Layout section.  Using the first Screen section.
[    49.408] (**) |-->Screen "Screen0" (0)
[    49.408] (**) |   |-->Monitor "<default monitor>"
[    49.408] (==) No device specified for screen "Screen0".
    Using the first device section listed.
[    49.408] (**) |   |-->Device "Card0"
[    49.408] (==) No monitor specified for screen "Screen0".
    Using a default monitor configuration.
[    49.408] (==) Automatically adding devices
[    49.408] (==) Automatically enabling devices
[    49.408] (==) Automatically adding GPU devices
[    49.408] (==) Automatically binding GPU devices
[    49.409] (==) Max clients allowed: 256, resource mask: 0x1fffff
[    49.414] (==) FontPath set to:
    /usr/local/share/fonts/misc/,
    /usr/local/share/fonts/TTF/,
    /usr/local/share/fonts/OTF/,
    /usr/local/share/fonts/Type1/,
    /usr/local/share/fonts/100dpi/,
    /usr/local/share/fonts/75dpi/,
    catalogue:/usr/local/etc/X11/fontpath.d
[    49.414] (==) ModulePath set to "/usr/local/lib/xorg/modules"
[    49.414] (II) The server relies on udev to provide the list of input devices.
    If no devices become available, reconfigure udev or disable AutoAddDevices.
[    49.414] (II) Module ABI versions:
[    49.414]    X.Org ANSI C Emulation: 0.4
[    49.414]    X.Org Video Driver: 25.2
[    49.414]    X.Org XInput driver : 24.4
[    49.414]    X.Org Server Extension : 10.0
[    49.418] (II) xfree86: Adding drm device (/dev/dri/card0)
[    49.418] (II) Platform probe for /dev/dri/card0
[    49.429] (--) PCI:*(0@0:2:0) 8086:9a49:17aa:22d5 rev 1, Mem @ 0x603c000000/16777216, 0x4000000000/268435456, I/O @ 0x00003000/64, BIOS @ 0x????????/65536
[    49.429] (II) LoadModule: "glx"
[    49.430] (II) Loading /usr/local/lib/xorg/modules/extensions/libglx.so
[    49.438] (II) Module glx: vendor="X.Org Foundation"
[    49.438]    compiled for 1.21.1.8, module version = 1.0.0
[    49.438]    ABI class: X.Org Server Extension, version 10.0
[    49.438] (==) Matched intel as autoconfigured driver 0
[    49.438] (==) Matched modesetting as autoconfigured driver 1
[    49.438] (==) Matched scfb as autoconfigured driver 2
[    49.438] (==) Matched vesa as autoconfigured driver 3
[    49.438] (==) Assigned the driver to the xf86ConfigLayout
[    49.438] (II) LoadModule: "intel"
[    49.439] (WW) Warning, couldn't open module intel
[    49.439] (EE) Failed to load module "intel" (module does not exist, 0)
[    49.439] (II) LoadModule: "modesetting"
[    49.439] (II) Loading /usr/local/lib/xorg/modules/drivers/modesetting_drv.so
[    49.442] (II) Module modesetting: vendor="X.Org Foundation"
[    49.443]    compiled for 1.21.1.8, module version = 1.21.1
[    49.443]    Module class: X.Org Video Driver
[    49.443]    ABI class: X.Org Video Driver, version 25.2
[    49.443] (II) LoadModule: "scfb"
[    49.443] (II) Loading /usr/local/lib/xorg/modules/drivers/scfb_drv.so
[    49.443] (II) Module scfb: vendor="X.Org Foundation"
[    49.443]    compiled for 1.21.1.8, module version = 0.0.5
[    49.443]    ABI class: X.Org Video Driver, version 25.2
[    49.443] (II) LoadModule: "vesa"
[    49.443] (II) Loading /usr/local/lib/xorg/modules/drivers/vesa_drv.so
[    49.443] (II) Module vesa: vendor="X.Org Foundation"
[    49.443]    compiled for 1.21.1.8, module version = 2.5.0
[    49.443]    Module class: X.Org Video Driver
[    49.443]    ABI class: X.Org Video Driver, version 25.2
[    49.443] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[    49.443] (II) scfb: driver for wsdisplay framebuffer: scfb
[    49.443] (II) VESA: driver for VESA chipsets: vesa
[    49.444] (--) Using syscons driver with X support (version 2.0)
[    49.444] (--) using VT number 9

[    49.446] (WW) Falling back to old probe method for modesetting
[    49.462] (II) modeset(0): using default device
[    49.462] (WW) Falling back to old probe method for scfb
[    49.462] scfb trace: probe start
[    49.462] (II) scfb(1): using default device
[    49.462] scfb trace: probe done
[    49.478] (II) modeset(G0): using drv /dev/dri/card0
[    49.478] (WW) VGA arbiter: cannot open kernel arbiter, no multi-card support
[    49.478] (EE)
Fatal server error:
[    49.478] (EE) Cannot run in framebuffer mode. Please specify busIDs        for all framebuffer devices
[    49.478] (EE)
[    49.478] (EE)
Please consult the The X.Org Foundation support
     at [URL]http://wiki.x.org[/URL]
 for help.
[    49.478] (EE) Please also check the log file at "/var/log/Xorg.0.log" for additional information.
[    49.478] (EE)
[    49.496] (EE) Server terminated with error (1). Closing log file.

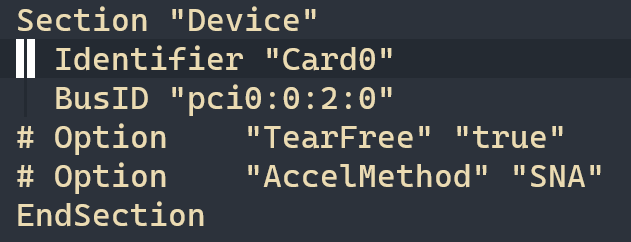

Since it said I need to specify busID, I checked my /usr/local/etc/X11/xorg.conf.d/20-intel.conf and it have


which should be fine, and the BusID here matches pciconf -lv result
Code:
hostb0@pci0:0:0:0:      class=0x060000 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a14 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = '11th Gen Core Processor Host Bridge/DRAM Registers'
    class      = bridge
    subclass   = HOST-PCI
vgapci0@pci0:0:2:0:     class=0x030000 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a49 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'TigerLake-LP GT2 [Iris Xe Graphics]'
    class      = display
    subclass   = VGA
none0@pci0:0:4:0:       class=0x118000 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a03 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'TigerLake-LP Dynamic Tuning Processor Participant'
    class      = dasp
pcib1@pci0:0:6:0:       class=0x060400 rev=0x01 hdr=0x01 vendor=0x8086 device=0x9a09 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = '11th Gen Core Processor PCIe Controller'
    class      = bridge
    subclass   = PCI-PCI
pcib2@pci0:0:7:0:       class=0x060400 rev=0x01 hdr=0x01 vendor=0x8086 device=0x9a25 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Thunderbolt 4 PCI Express Root Port'
    class      = bridge
    subclass   = PCI-PCI
pcib3@pci0:0:7:2:       class=0x060400 rev=0x01 hdr=0x01 vendor=0x8086 device=0x9a27 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Thunderbolt 4 PCI Express Root Port'
    class      = bridge
    subclass   = PCI-PCI
none1@pci0:0:8:0:       class=0x088000 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a11 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'GNA Scoring Accelerator module'
    class      = base peripheral
none2@pci0:0:10:0:      class=0x118000 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a0d subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tigerlake Telemetry Aggregator Driver'
    class      = dasp
xhci0@pci0:0:13:0:      class=0x0c0330 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a13 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Thunderbolt 4 USB Controller'
    class      = serial bus
    subclass   = USB
none3@pci0:0:13:2:      class=0x0c0340 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a1b subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Thunderbolt 4 NHI'
    class      = serial bus
    subclass   = USB
none4@pci0:0:13:3:      class=0x0c0340 rev=0x01 hdr=0x00 vendor=0x8086 device=0x9a1d subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Thunderbolt 4 NHI'
    class      = serial bus
    subclass   = USB
xhci1@pci0:0:20:0:      class=0x0c0330 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0ed subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP USB 3.2 Gen 2x1 xHCI Host Controller'
    class      = serial bus
    subclass   = USB
none5@pci0:0:20:2:      class=0x050000 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0ef subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Shared SRAM'
    class      = memory
    subclass   = RAM
iwlwifi0@pci0:0:20:3:   class=0x028000 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0f0 subvendor=0x8086 subdevice=0x0070
    vendor     = 'Intel Corporation'
    device     = 'Wi-Fi 6 AX201'
    class      = network
ig4iic0@pci0:0:21:0:    class=0x0c8000 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0e8 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Serial IO I2C Controller'
    class      = serial bus
none6@pci0:0:22:0:      class=0x078000 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0e0 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Management Engine Interface'
    class      = simple comms
none7@pci0:0:22:3:      class=0x070002 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0e3 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Active Management Technology - SOL'
    class      = simple comms
    subclass   = UART
isab0@pci0:0:31:0:      class=0x060100 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa082 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP LPC Controller'
    class      = bridge
    subclass   = PCI-ISA
hdac0@pci0:0:31:3:      class=0x040380 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0c8 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP Smart Sound Technology Audio Controller'
    class      = multimedia
    subclass   = HDA
ichsmb0@pci0:0:31:4:    class=0x0c0500 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0a3 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP SMBus Controller'
    class      = serial bus
    subclass   = SMBus
none8@pci0:0:31:5:      class=0x0c8000 rev=0x20 hdr=0x00 vendor=0x8086 device=0xa0a4 subvendor=0x17aa subdevice=0x22d5
    vendor     = 'Intel Corporation'
    device     = 'Tiger Lake-LP SPI Controller'
    class      = serial bus
nvme0@pci0:4:0:0:       class=0x010802 rev=0x00 hdr=0x00 vendor=0x144d device=0xa80a subvendor=0x144d subdevice=0xa801
    vendor     = 'Samsung Electronics Co Ltd'
    device     = 'NVMe SSD Controller PM9A1/PM9A3/980PRO'
    class      = mass storage
    subclass   = NVM

pkgs I have for intel GPU are
Code:
gpu-firmware-intel-kmod-alderlake
gpu-firmware-intel-kmod-broxton
gpu-firmware-intel-kmod-cannonlake
gpu-firmware-intel-kmod-dg1
gpu-firmware-intel-kmod-elkhartlake
gpu-firmware-intel-kmod-geminilake
gpu-firmware-intel-kmod-icelake
gpu-firmware-intel-kmod-kabylake
gpu-firmware-intel-kmod-rocketlake
gpu-firmware-intel-kmod-skylake
gpu-firmware-intel-kmod-tigerlake
libva-intel-driver
libva-intel-hybrid-driver
libva-intel-media-driver
Code:
drm-510-kmod
libdrm

any one have any ideas?
thanks in advance!

You might be looking at issues with drm-kmod. Have you attempted to reinstall all drm-kmod related packages?

I assume, i915kms is loaded? Could you please check kldstat?

Yesterday, I also upgraded. My system was 13.2p1. There were no system updates, just pkg updates (200+).

When I tried startx, got the same error:
Cannot run in framebuffer mode. Please specify busIDs for all framebuffer devices

I had no xorg configurations file. It seems the automatic configuration for xorg is not working as before.

My system has a Radeon card (HD 7750) and uses the amdgpu driver.

You are not alone with xorg configuration update problems.

try handbook example for Xorg configuration:
Code:
Section "Device"
      Identifier "Card0"
      Driver "intel"
EndSection

Edit:
You not installed xorg driver for your card?
pkg install xf86-video-intel

cmoerz said:
You might be looking at issues with drm-kmod. Have you attempted to reinstall all drm-kmod related packages?

I assume, i915kms is loaded? Could you please check kldstat?
Click to expand...
kldstat | grep i915kms
6 1 0xffffffff84e43000 182887 i915kms.ko
Click to expand...

It seems to be loaded correctly

And I tried deinstall and reinstall my drm-kmod510 through ports(515 is not compatible with kernel before 14.0) before I post this thread.

Winson said:
Since it said I need to specify busID, I checked my /usr/local/etc/X11/xorg.conf.d/20-intel.conf and it have
Click to expand...
It's missing the driver line, and should not be needed anyway if you are using drm/kms drivers with modesetting. Check that your kms driver is loaded successfully.
Bill_H said:
I had no xorg configurations file. It seems the automatic configuration for xorg is not working as before.
Click to expand...
Sounds like wrong conclusion without providing any information, check that your kms drivers are loaded as well.

Bill_H said:
Yesterday, I also upgraded. My system was 13.2p1. There were no system updates, just pkg updates (200+).

When I tried startx, got the same error:
Cannot run in framebuffer mode. Please specify busIDs for all framebuffer devices

I had no xorg configurations file. It seems the automatic configuration for xorg is not working as before.

My system has a Radeon card (HD 7750) and uses the amdgpu driver.

You are not alone with xorg configuration update problems.
Click to expand...
Yeah, I kinda did both system upgrade and pkg upgrade. No sure which one caused this, since you mentioned this, I do recall that I tried reboot after system upgrade. Everything was normal, so it is more likely a pkg upgrade problem

yuripv79 said:
Got an update while I was writing previous reply :) Try removing 20-intel.conf as it looks to be wrong.
Click to expand...
It worked!! Thank you sooo much yuripv79!!!

But I can't help notising it is slower when I tried to make changes to my WM(dwm). Like when I start a new windows or closing one, it is significantly slower. Any chance that have something to do with what I had in my old 20-intel.conf?

cmoerz said:
If you're using the drm-kmod driver, you shouldn't need any X11 driver.

I'd usually expect modesetting to work out of the box if you load the correct kernel module - unless it's suppressed via the relevant sysctl... I'm wondering what was in that intel.conf file?
Click to expand...
Not much, just Identifier and BusID

Alex Seitsinger said:
You might benefit from trying the modesetting driver if you have loaded i915kms

Code:
Section Device
    ...
    driver "modesetting"
    ...
EndSection
Click to expand...

cmoerz said:
I'd usually expect modesetting to work out of the box if you load the correct kernel module - unless it's suppressed via the relevant sysctl
Click to expand...

Is the FreeBSD Handbook an issue?

<https://docs.freebsd.org/en/books/handbook/book/#x-config-video-cards>:

1. encourages manual creation of a file
2. does not suggest modesetting.

<https://cgit.freebsd.org/doc/blame/documentation/content/en/books/handbook/x11/_index.adoc#n351>

The documentation review process for ⚙ D38143 Handbook WG - X11:

Winson, gentle hint:

forums.freebsd.org

Hint: how to edit the title (subject line) of a topic (thread), or add the 'Solved' prefix

A number of topics are solved, but not marked as such. There seems to be no guideline. Please, can one be added? With a screenshot, or two, to make XenForo less ambiguous. https://forums.freebsd.org/forums/forum-rules-and-guidelines-required-reading.49/ Thanks
forums.freebsd.org forums.freebsd.org

Thanks

You must log in or register to reply here.
Back
Top
