vbox VirtualBox 6.18 12.2p6 headless black screen X Cursor

Hello Community ,

I'm trying to get VirtualBox working on my freebsd 12.2p6 server .

I created my own freebsd vm and if I start the vm I can see vbox process run and consumes 100% cpu util. on one core .

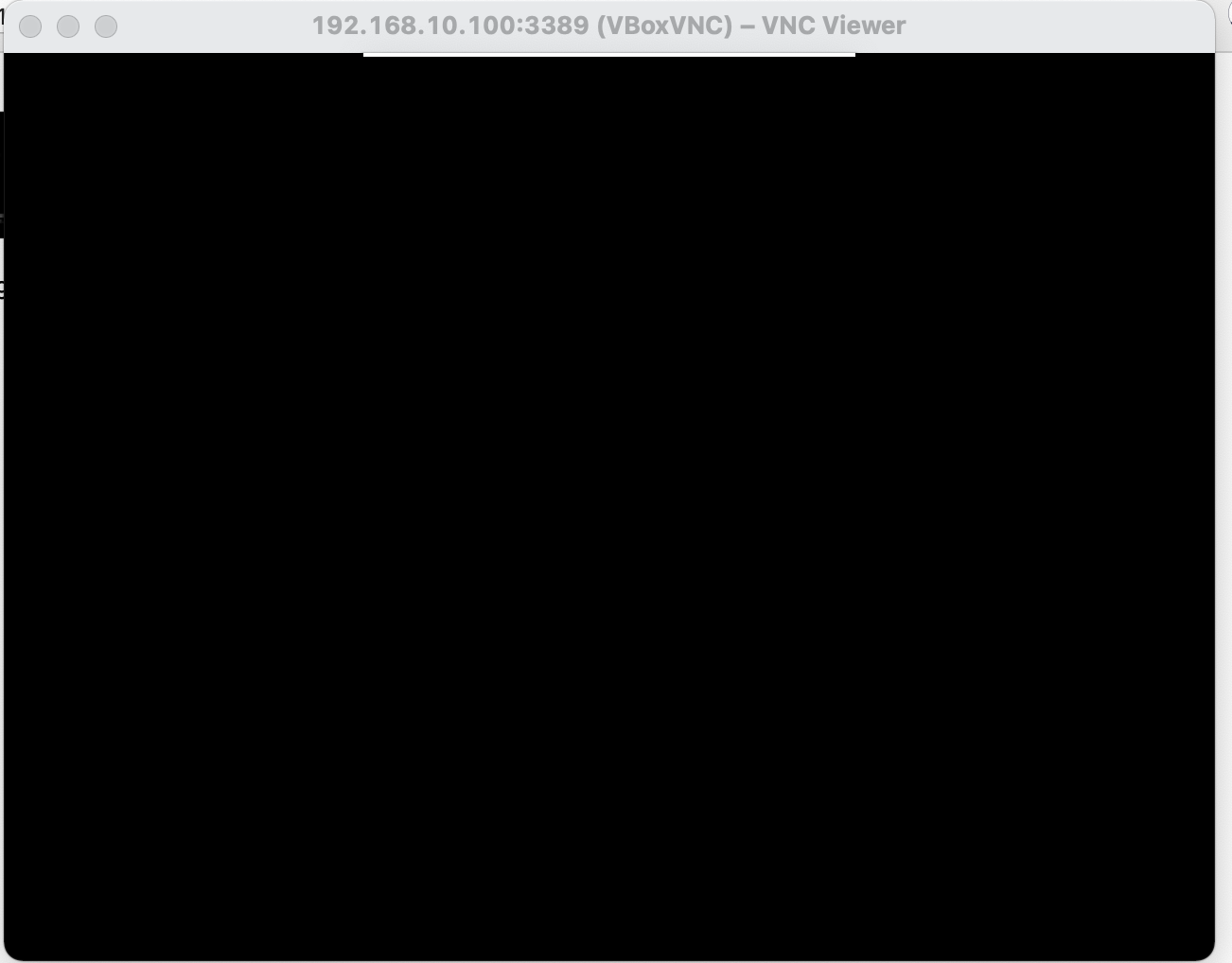

When I try to login to the vm screen just show a black screen.

Code:
VBoxManage createhd --filename VirtualBox\ VMs/t0/t0.vdi --size 2000

VBoxManage storagectl t0 --name sata_bus --add sata --portcount 4 --bootable on
VBoxManage storageattach t0 --storagectl sata_bus --port 1 --type hdd --medium VirtualBox\ VMs/t0/t0.vdi
VBoxManage storageattach t0 --storagectl sata_bus --port 2 --type dvddrive --medium ~/VirtualBox\ VMs/ISO/FreeBSD-13.0-RELEASE-amd64-bootonly.iso

VBoxManage modifyvm t0 -vrdp
VBoxManage modifyvm t0 --vrdeproperty VNCPassword=secret


VBoxManage  modifyvm t0 --nic1 bridged --bridgeadapter1 alc0 --nictype1 82540EM
enabled VNC Support
Code:
VBoxManage modifyvm t0 --vrdp on
VBoxManage modifyvm t0 --vrdeproperty VNCPassword=secret


# Start VM with
VBoxManage startvm t0 --type headless

VNC Viewer ( apple / mac ) ip:5900



I tried to use a vagrant box . It is the same I can see process with 100% and nothing happens... .


Code:
╰─ sockstat | grep 5900
sharky   VBoxHeadle 29347 19 tcp6   *:5900                *:*

Code:
╰─ ps aux | grep VBox
sharky  29347 100.0  0.2  123460  62784  -  S    18:04       0:28.76 /usr/local/lib/virtualbox/VBoxHeadless --comment t0 --startvm 6aba0f0e-bab1-46b1-8cdc-772f72bdd4c9 --vrde config
sharky  29342   0.0  0.0   27692  16308  -  S    18:04       0:00.02 /usr/local/lib/virtualbox/VBoxXPCOMIPCD
sharky  29344   0.0  0.1   54308  23180  -  S    18:04       0:00.07 /usr/local/lib/virtualbox/VBoxSVC --auto-shutdown
sharky  29372   0.0  0.0   11372   2820  2  R+   18:05       0:00.00 grep VBox

Code:
╰─ VBoxManage startvm t0 --type headless
Waiting for VM "t0" to power on...
VM "t0" has been successfully started.

Code:
freebsd# grep vbox /etc/rc.conf
vboxnet_enable="YES"
vboxguest_enable="YES"
vboxservice_enable="YES"
freebsd# grep vbox /boot/loader.conf
vboxdrv_load="YES"
/var/log/messages
Code:
May  1 17:17:23 freebsd kernel: vboxdrv: XXXXXXXXXXXXXXXX VMMR0.r0
May  1 17:17:23 freebsd kernel: vboxdrv: XXXXXXXXXXXXXXXX VBoxDDR0.r0
May  1 17:17:23 freebsd kernel: VMMR0InitVM: eflags=40246 fKernelFeatures=0x2 (SUPKERNELFEATURES_SMAP=1)
May  1 17:37:31 freebsd kernel: vboxdrv: XXXXXXXXXXXXXXXX VMMR0.r0
May  1 17:37:31 freebsd kernel: vboxdrv: XXXXXXXXXXXXXXXX VBoxDDR0.r0
May  1 17:37:31 freebsd kernel: VMMR0InitVM: eflags=40246 fKernelFeatures=0x2 (SUPKERNELFEATURES_SMAP=1)


Code:
freebsd# kldstat | grep vbox
3    3 0xffffffff829ec000    8d5c8 vboxdrv.ko
20    2 0xffffffff8314b000     2cd0 vboxnetflt.ko
21    1 0xffffffff8314e000     3f00 vboxnetadp.ko


Attachments

  • 1619885242976.png
    75.4 KB · Views: 105
