Solved Thunar: Devices

[Cath O'Deray]

… FreeBSD 14.1 and Xfce …

… shortcuts contained within the device area of the Thunar file manager do not seem to function properly …

… UFS …

Cedric62 I see your screenshots, but I can't tell what happens with File System.

File System works for me, with ZFS.

% pkg iinfo thunar
thunar-4.18.11
thunar-archive-plugin-0.5.2_1
thunar-media-tags-plugin-0.4.0_4
thunar-vcs-plugin-0.2.0_7
% freebsd-version -kru ; uname -aKU
15.0-CURRENT
15.0-CURRENT
15.0-CURRENT
FreeBSD mowa219-gjp4-zbook-freebsd 15.0-CURRENT FreeBSD 15.0-CURRENT main-n271827-c3516c6533a1 GENERIC-NODEBUG amd64 1500023 1500023
% pkg -vv | grep -B 1 -e url -e priority
  FreeBSD-ports: {
    url             : "pkg+https://pkg.freebsd.org/FreeBSD:15:amd64/latest",
    enabled         : yes,
    priority        : 2,
--
  FreeBSD-base: {
    url             : "pkg+https://pkg.freebsd.org/FreeBSD:15:amd64/base_latest",
    enabled         : yes,
    priority        : 0,
--
  aninstaller: {
    url             : "file:////media/aninstaller/packages/FreeBSD:14:amd64",
    enabled         : no,
    priority        : 0
--
  local-poudriere: {
    url             : "file:///usr/local/poudriere/data/packages/main-default",
    enabled         : yes,
    priority        : 3
%



[Cedric62]

Okay, I think that I figured something out, and my eyes may have been playing tricks on me due to my earlier confusion.

If I go to the command line and type mount /usba, then the usb shortcut located within the device area of the side panel disapears, and is not visible while the usb thumbstic is mounted. However, if I unmount my usb thumbdrive by typing umount /usba, then the shortcut reappears.

Also, if I click on the usb shortcut, while the usb thumbdrive is actually unmounted, then I get a error message stating not authorized. See attached screenshot. At anyrate, I guess this is not a huge issue, as I'm able to read and write files to my usb thumbdrive via the shortcut I created on my desktop.



[bsduck]

I think that for the mounted partition to show up in the "Devices" area, you need to mount it as a subdirectory of /media, for example /media/usba.



[Cedric62]

I think that for the mounted partition to show up in the "Devices" area, you need to mount it as a subdirectory of /media, for example /media/usba.

for some reason I couldn't get it to work that way, so I just created a new directory directly within root directory, and used that instead.



[Cath O'Deray]

… need to mount it as a subdirectory of /media, …

That's good practice, hier(7) notes that /media/ (not /mnt/) is:

• mount points for removable storage media such as CDs, DVDs, and USB drives; see automount(8), or bsdisks(8) if a using a desktop environment from ports(7).

It seems that File System – mount point / – is a special case, represented as a system drive and a device, in applications such as Thunar.

In the first shot to the right, detected devices:

• include /media/mmcsd0p1 – an msdosfs file system in a card slot
• include /media/t1000 – a ZFS dataset on an external hard disk drive on USB
• include /media/t1000/VirtualBox – a separate dataset in the same pool
• exclude /internalssd – a ZFS dataset on an internal SSD.

---

In the second shot, Thunar can not eject the VirtualBox device.

Thunar's warning about data is false:

• no files were open
• zfs umount succeeded, as root.

root@mowa219-gjp4-zbook-freebsd:~ # lsof /media/t1000/VirtualBox
root@mowa219-gjp4-zbook-freebsd:~ # zfs umount Transcend/VirtualBox
root@mowa219-gjp4-zbook-freebsd:~ # zfs version
zfs-2.2.99-634-FreeBSD_gd2ccc2155
zfs-kmod-2.2.99-634-FreeBSD_gd2ccc2155
root@mowa219-gjp4-zbook-freebsd:~ # uname -mvKU
FreeBSD 15.0-CURRENT main-n271831-6e7581236ed7 GENERIC-NODEBUG amd64 1500023 1500023
root@mowa219-gjp4-zbook-freebsd:~ #



[Cath O'Deray]

for some reason …

ls -dhl /media/usba

(Who owns the directory (the previously used mount point), and what's its mode?)



[Cedric62]

ls -dhl /media/usba

(Who owns the directory (the previously used mount point), and what's its mode?)

Thanks for the above information. I probably won't be able to look at this in greater detail until this coming weekend. Grandchildren keep me busy.



[Cedric62]

I had a chance to look at this late last night, and I now seem to be mounting my usb and cdrom drives correctly. (see attached screenshots)

I hate to admit this, but I think that earlier I may have forgotten to create the directory "usba" within the media directory, because when I looked to see who owned it, it wasn't there. (boy do I feel silly) At any rate, I created a new usba directory within media, and then I used the chown command to give myself the right to read and write to it. After that I simply made a little change in fstab, and it worked. In this case, I may have actually caused my own grief by not keeping good notes of what I was doing, and also by being a little sloppy when creating mount point folders within the media directory.

Also, I'm probably not very familiar with certain terminology when describing things, so I would like to thank everyone for their patience.



[Cedric62]

ls -dhl /media/usba

(Who owns the directory (the previously used mount point), and what's its mode?)

I fixed it, it now works.



[Cath O'Deray]

Thanks … topic Solved

---

… Thunar can not eject the VirtualBox device. …

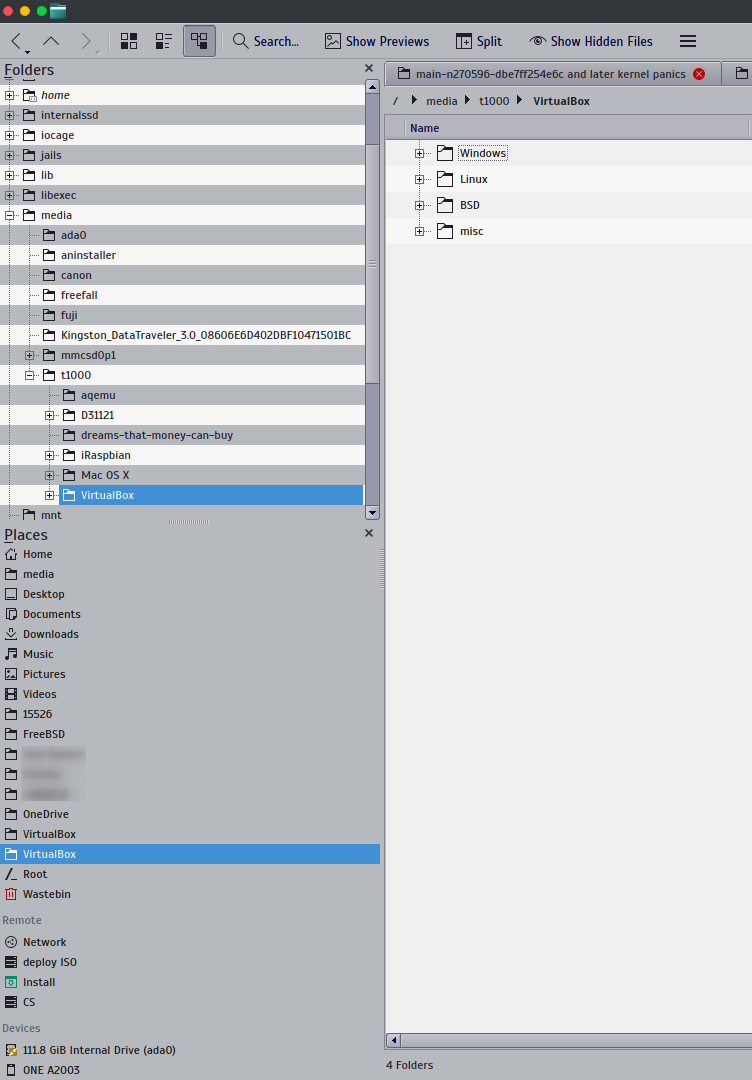

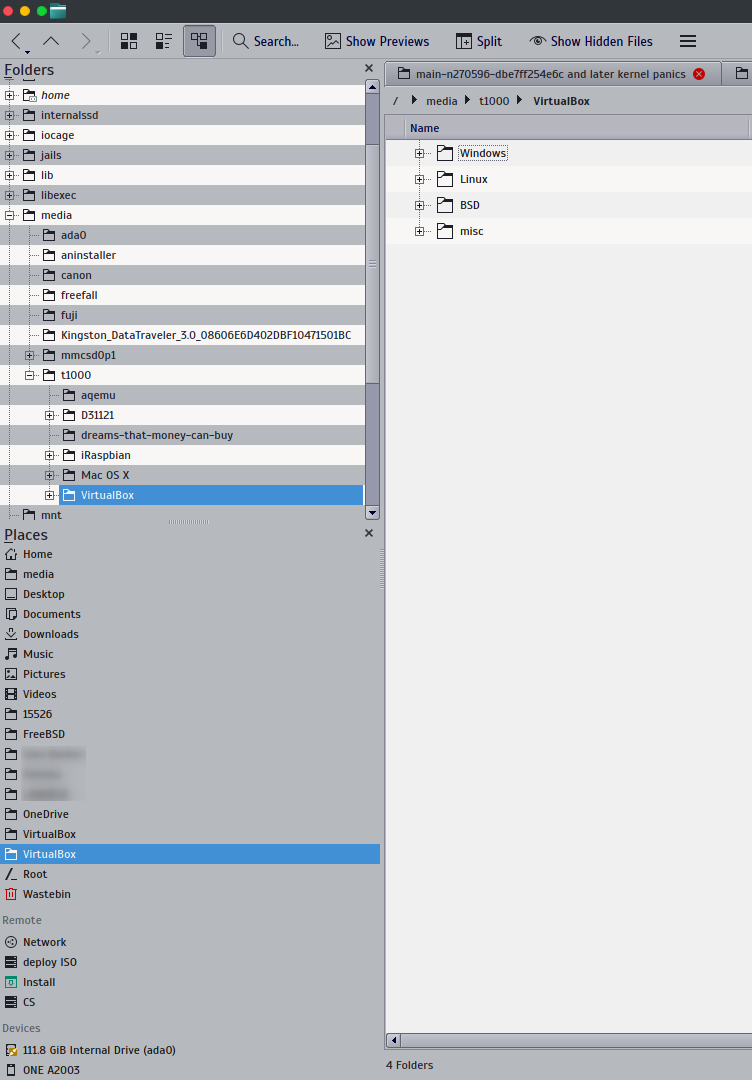

At the time, I compared with Dolphin. A screenshot from two days ago:

• neither t1000 nor VirtualBox is represented as a device (correct).



[Cedric62]

Thanks … topic Solved

---

View attachment 20168At the time, I compared with Dolphin. A screenshot from two days ago:

• neither t1000 nor VirtualBox is represented as a device (correct).

I'm sorry, but I don't know about Virtual Box or t1000. I don't know enough to answer your comment. Sorry.
