System OOM killing my shell but top almost empty

DaveQB

DaveQB

Hi all,

Been using Unix systems for 15 years now and can generally find my answers with searching, but my FreeBSD experience is only a few years and I cannot figure this one out. I can reboot the server to solve this, but I want to learn more. I will increase the swap space once I get this up, but I want to learn how better to troubleshoot this.
FreeBSD 12.1

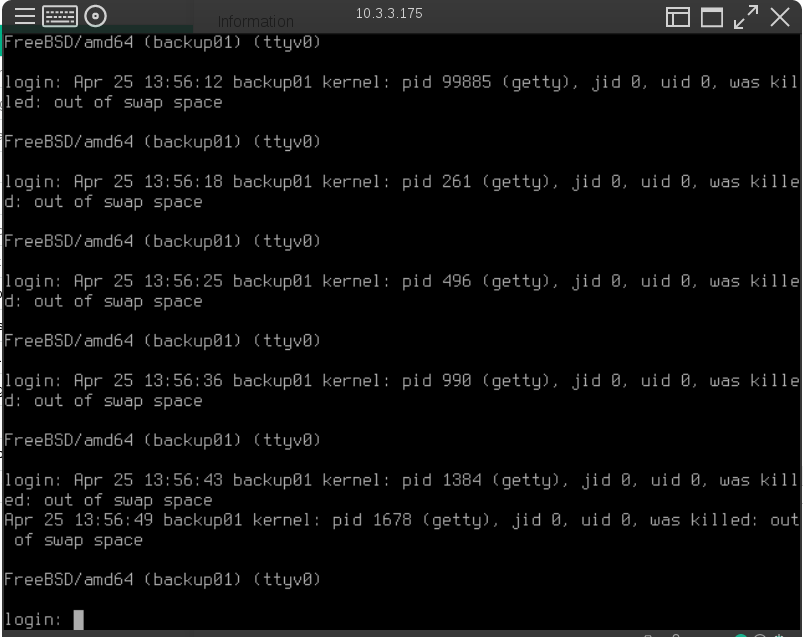

The system has killed off most processes, as you can see. When I try to login, it is a race to try and run something (like top) before my shell is killed with "out of swap" message. Even logging in, my login process can be killed between entering the username and the password. I cannot see, in top, what is hogging all of the memory.





I want to run something like this: ps -eo pmem,pid,pcpu,rss,vsz,time,args | sort -k 1 -r but I am unable to type it fast enough.

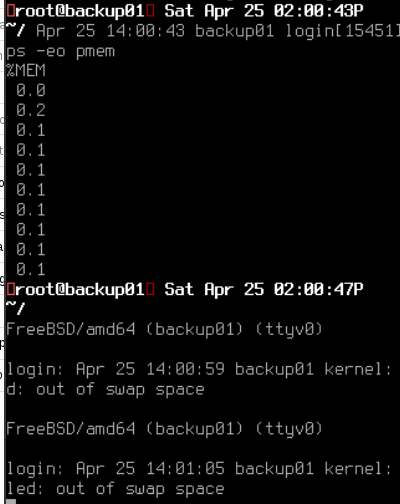

I did just manage get this info:



Any suggestions appreciated.

Thank you.

DaveQB said:
I want to run something like this: ps -eo pmem,pid,pcpu,rss,vsz,time,args | sort -k 1 -r but I am unable to type it fast enough.
Click to expand...
You could write a sh(1) script (which dumps the output to a file, or if a suitable mail system is available, sends a mail), and scp(1) to remote system (images #1,#2 looks like a ssh session). Choose the file names for the script and dumped file short (one character should suffice), to shorten the time to type the execution command of the script and, eventually, read the dumped file, if not scp to ssh client system.

The solution depends on exactly when the problem is happening.

Assuming it occurs only after you login, then create and test a script to gather the evidence you need on another system if you can. That will shorten the debug cycle on the problem system.

Then boot single user mode, and mount the file systems you need writable.

Then install the script in your $HOME/.profile (or whatever profile your shell uses) so that it's executed automatically every time you login.

Reboot multi-user.

T-Daemon said:
You could write a sh(1) script (which dumps the output to a file, or if a suitable mail system is available, sends a mail), and scp(1) to remote system (images #1,#2 looks like a ssh session). Choose the file names for the script and dumped file short (one character should suffice), to shorten the time to type the execution command of the script and, eventually, read the dumped file, if not scp to ssh client system.
Click to expand...
Thanks. I did think of this, but didn't even bother trying, as I only have seconds to run something, not enough time to scp. Like I said, the login is being killed between entering a username and a password.

Nah, SSHD is killed and won't start. It is an HP ILO dialogue I am using to access it.

Thanks.

gpw928 said:
The solution depends on exactly when the problem is happening.

Assuming it occurs only after you login, then create and test a script to gather the evidence you need on another system if you can. That will shorten the debug cycle on the problem system.

Then boot single user mode, and mount the file systems you need writable.

Then install the script in your $HOME/.profile (or whatever profile your shell uses) so that it's executed automatically every time you login.

Reboot multi-user.
Click to expand...

Memory is full, full time. So even the login screen is having its process killed, as seen in one of the screenshots. Ok, I'll try that, but I doubt scp command will complete before being killed. But I am more interested in what to run to debug (applications, in memory consumption order, even though the output of top and ps are saying there's only about 10-13 processes running with minimal memory usage).

Once I reboot, the issue will be no more. Like I said in my post "I can reboot the server to solve this, but I want to learn more."

Thanks.

shkhln said:

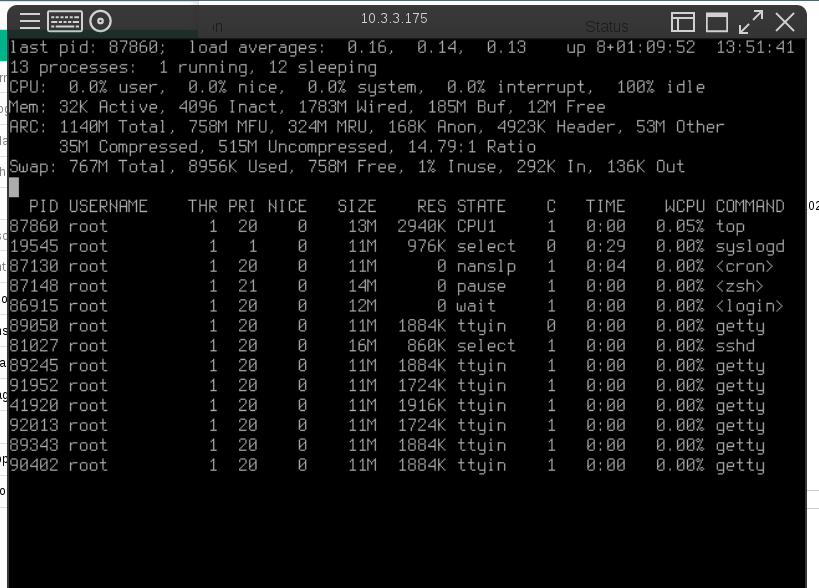

You mean "1783M Wired" is not clear enough?
Click to expand...

No. "1783M Wired" doesn't tell me which process(es) is hogging the memory. Could you explain please further? There's not enough characters in "1783M Wired" to be able to list all of the processes, as far as I can see. Unless it is some sort of stenography I am not understanding ?‍♂️

Thanks though.

DaveQB said:
No. "1783M Wired" doesn't tell me which process(es) is hogging the memory. Could you explain please further? There's not enough characters in "1783M Wired" to be able to list all of the processes, as far as I can see. Unless it is some sort of stenography I am not understanding ?‍♂️

Thanks though.
Click to expand...
FreeBSD Wiki - Memory - While it can represent mlock'ed application memory, it's pretty much "what the kernel is consuming." pyret is probably correct if you're using zfs.

If your system is compromised all you can do is plan what to do next time and reboot.

If you are lucky, there might be something informative in /var/log/messages.

If the system is running out of memory as soon as it boots, then you can still install diagnostics in single user mode to be run when you boot.

So install this script as /usr/local/etc/rc.d/memwatch. Make it executable and adjust the diagnostic commands to your needs:
Code:
#!/bin/sh

# PROVIDE: memwatch
# REQUIRE: DAEMON
# BEFORE:  LOGIN
# KEYWORD: shutdown

PASSES=600      # runs for for 60 seconds from early boot

n=0
while [ $n -lt $PASSES ]
do
    (
        date
        ps mauxwwwwwwww
        top -b -H -w 10
        echo ====
    ) >>/var/tmp/mylog
    sync
    sleep 0.1
    n=$((n+1))
done &

Leave the log on the local disk. Boot single user. Add swap space. Reboot. Examine the log. Delete/disable the diagnostic.

When you can't rely on network applications to be working when you need them, I would format a file system on a USB stick, mount it somewhere suitable form /etc/fstab, and write your diagnostics to that.

If the situation warranted, you could even mount /var/log on the USB stick, and collect all the system logs.

AngryChris said:
FreeBSD Wiki - Memory - While it can represent mlock'ed application memory, it's pretty much "what the kernel is consuming." pyret is probably correct if you're using zfs.
Click to expand...

Right. So ZFS memory consumption won't show in top? That might well explain it. This being a backup server, it does a lot of ZFS work (send/recv/syncoid)

Thanks for the link. I'll take a read.

gpw928 said:
If your system is compromised all you can do is plan what to do next time and reboot.

If you are lucky, there might be something informative in /var/log/messages.

If the system is running out of memory as soon as it boots, then you can still install diagnostics in single user mode to be run when you boot.

So install this script as /usr/local/etc/rc.d/memwatch. Make it executable and adjust the diagnostic commands to your needs:
Code:
#!/bin/sh

# PROVIDE: memwatch
# REQUIRE: DAEMON
# BEFORE:  LOGIN
# KEYWORD: shutdown

PASSES=600      # runs for for 60 seconds from early boot

n=0
while [ $n -lt $PASSES ]
do
    (
        date
        ps mauxwwwwwwww
        top -b -H -w 10
        echo ====
    ) >>/var/tmp/mylog
    sync
    sleep 0.1
    n=$((n+1))
done &

Leave the log on the local disk. Boot single user. Add swap space. Reboot. Examine the log. Delete/disable the diagnostic.
Click to expand...

Brilliant script idea. Thanks for that. Great tool to add to the sys admin tool box.

gpw928 said:
When you can't rely on network applications to be working when you need them, I would format a file system on a USB stick, mount it somewhere suitable form /etc/fstab, and write your diagnostics to that.

If the situation warranted, you could even mount /var/log on the USB stick, and collect all the system logs.
Click to expand...

Sure. Could do.

I am more interested in:

- How to list processes by memory
- Everything so far is showing little memory use by the few processes remaining

It looks to me like you have 2GB real memory and 767MB swap. That's pretty skinny for a ZFS server.

Are you using de-duplication (it's a memory hog)?

There's lots of ZFS threads on the list.

DaveQB said:
Sure. Could do.

I am more interested in:

- How to list processes by memory
- Everything so far is showing little memory use by the few processes remaining
Click to expand...
top -o res should provide info, and of course the ARC info in upper part of top. As mentioned before, wired memory consists of ZFSs ARC cache (not only). You could limit ARC cache to 512MB like this: echo "vfs.zfs.arc_max=536870912" >> /boot/loader.conf and reboot

1140M arc lines up well with 1780M wired, but it does not line up with 12M free or 35M compressed. That arc is unable to shrink. Could be s/t similar to the max-vnode issue.

gpw928 said:
It looks to me like you have 2GB real memory and 767MB swap. That's pretty skinny for a ZFS server.

Are you using de-duplication (it's a memory hog)?

There's lots of ZFS threads on the list.
Click to expand...

It is a backup server. So syncoid over some ZFS snapshots to this box and upload to BackBlaze. No dedup. I have learnt "never use it". I wish there was a file level de-dedup. It could have been more memory friendly ?‍♂️

Alain De Vos said:
Killing of a shell is frequently running out of memory.
Try specifying a good value for vfs.zfs.arc_max.
Click to expand...

Thanks.

rootbert said:
top -o res should provide info, and of course the ARC info in upper part of top. As mentioned before, wired memory consists of ZFSs ARC cache (not only). You could limit ARC cache to 512MB like this: echo "vfs.zfs.arc_max=536870912" >> /boot/loader.conf and reboot
Click to expand...

Thanks. I think I will. I did manually sort top by RES and not much in the way of memory used. Thus I came here to discuss. It must be the ARC, but as noted, ARC is only using 1140MB

PMc said:
1140M arc lines up well with 1780M wired, but it does not line up with 12M free or 35M compressed. That arc is unable to shrink. Could be s/t similar to the max-vnode issue.
Click to expand...

Yes. This is my confusion ?‍♂️

DaveQB said:
Yes. This is my confusion ?‍♂️
Click to expand...
could give it a try... find out what sysctl kern.maxvnodes is. if it's around 100000, reduce to 40000 (and kern .minvnodes to some 1/4 of that). and anyway, sysctl kstat.zfs | grep evictable might be interesting.

gpw928 said:
It looks to me like you have 2GB real memory and 767MB swap. That's pretty skinny for a ZFS server.

Are you using de-duplication (it's a memory hog)?

There's lots of ZFS threads on the list.
Click to expand...

It is a backup server. So syncoid over some ZFS snapshots to this box and upload to BackBlaze. No dedup. I have learnt "never use it". I wish there was a file level de-dedup. It could have been more memory friendly ?‍♂️

Alain De Vos said:
Killing of a shell is frequently running out of memory.
Try specifying a good value for vfs.zfs.arc_max.
Click to expand...

Thanks.

rootbert said:
top -o res should provide info, and of course the ARC info in upper part of top. As mentioned before, wired memory consists of ZFSs ARC cache (not only). You could limit ARC cache to 512MB like this: echo "vfs.zfs.arc_max=536870912" >> /boot/loader.conf and reboot
Click to expand...

Thanks. I think I will. I did manually sort top by RES and not much in the way of memory used. Thus I came here to discuss. It must be the ARC, but as noted, ARC is only using 1140MB

PMc said:
1140M arc lines up well with 1780M wired, but it does not line up with 12M free or 35M compressed. That arc is unable to shrink. Could be s/t similar to the max-vnode issue.
Click to expand...

Yes. This is my confusion

Thanks everyone, for your input. I am rebooting it now. I'll reduce the ARC. That should prevent this happening again. Still odd that ARC wasn't what was filling up all of the RAM (1140M ARC on a 2GB RAM system).
