Secured Server for Collaborative Word/Text-editor ?

Spartrekus

Aspiring Daemon

Reaction score: 113
Messages: 693

Hello,

Would you eventually a service that would allow the Collaborative Word/Text-editor ? Example of secured server: Gobby, Libreoffice collaborative,...
The server has SSH (ideal for SFTP) which allowed "Secured".

Looking forward to reading your possible ideas.

Many thanks in advance

OP
OP
Spartrekus

Spartrekus

Aspiring Daemon

Reaction score: 113
Messages: 693

Nextcloud + Colabora = Libreoffice in the Browser.

Here You have the Nextcloud part:
https://vermaden.wordpress.com/2018/04/04/nextcloud-13-on-freebsd/
thank you. browser is slow.
third parties have to be avoided in all cases.

infininoted might be good, in direction of gobby
I like infinoted for gobby, it might be easy to run over ssh + windows.

What about to connect over SSH from Putty. Once in, how can the user start gobby over this connect to a machine within the intranet (given IP number)?
how to redirect via putty on windows for gobby to work over ssh connection? (the gobby infinoted is at 192.168.10.150).

a notedpad editor for ncurses for gobby servers (infinoted at 192.168.10.150)?


Last edited:
OP
OP
Spartrekus

Spartrekus

Aspiring Daemon

Reaction score: 113
Messages: 693

Secured Gobby Is the Best of the Best !!
No Third-Parties ! No Apple, Google, Microsoft, ... on board using up the web and spying on your documents !

Gobby over Putty is a good solution.
You can run headless a server for realtime collaborative multi-edit/multiuser with this following method.
There is a as well a chat option.
The editor Gobby has numerous features ; C, C++, Latex,... and even FORTRAN syntax are there for you !

Section #1 - Requirements & Service Installation -
- Machine Server #1: SSH Service (1) Gate:
You have a gate with SSH.
Code:
 pkg install ssh
IP of #1: IP with given port over the web (gate, $serverip)

- Machine Server #2: Gobby server Service (2) Collaborative:
Code:
[infinoted]
security-policy=require-tls
key-file=/home/infinoted/keys/infinoted.key
certificate-file=/home/infinoted/keys/infinoted.cert
root-directory=/home/infinoted/data
plugins=note-text;autosave

[autosave]
interval=20
IP of #2: IP with port 6523 of Gobby. (Collaborative service, $IP_GOBBY)
(here in this example: 192.168.10.150)
Compile and run the service at boot of BSD.

Section #2 - Methodology of Use -
1: ssh server with given ip $serverip
2: In Windows, starts putty

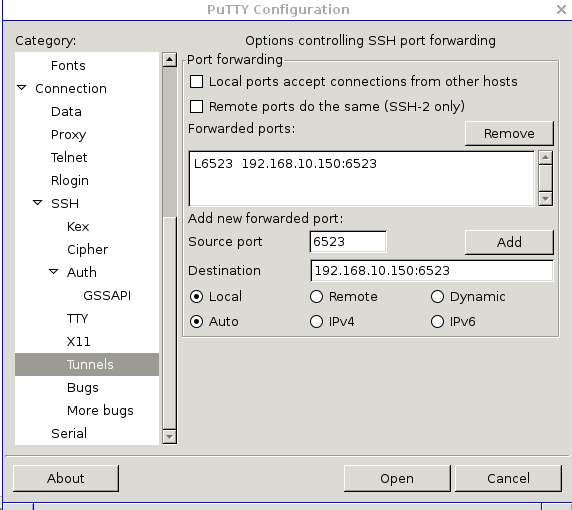

putty:
go into tunnel of putty.

source port: 6523
target : 192.168.10.150:6523
click on ADD

4853


place into putty the ip of server and port.
RUN and login distant!

3: Once logged, after key ssh, login/pass, your are ready with your tunnel:

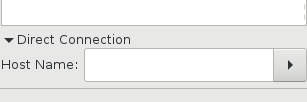

start gobby vers. 0.50. at least, since it is more compatible. Older versions had issue of compatibnitlity.
https://github.com/gobby/gobby/wiki/Download
http://releases.0x539.de/gobby/gobby-stable.exe

4851

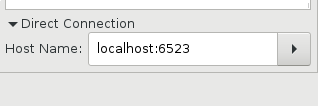

and enter distant connection: localhost:6523
the localhost is not local, but you will connect over ssh over the tunnel you created i.e. local 6523 | Wall of Fire | => | www | => | Wall of Fire (X) | => ssh Port: X => 192.168.10.150:6523
4855

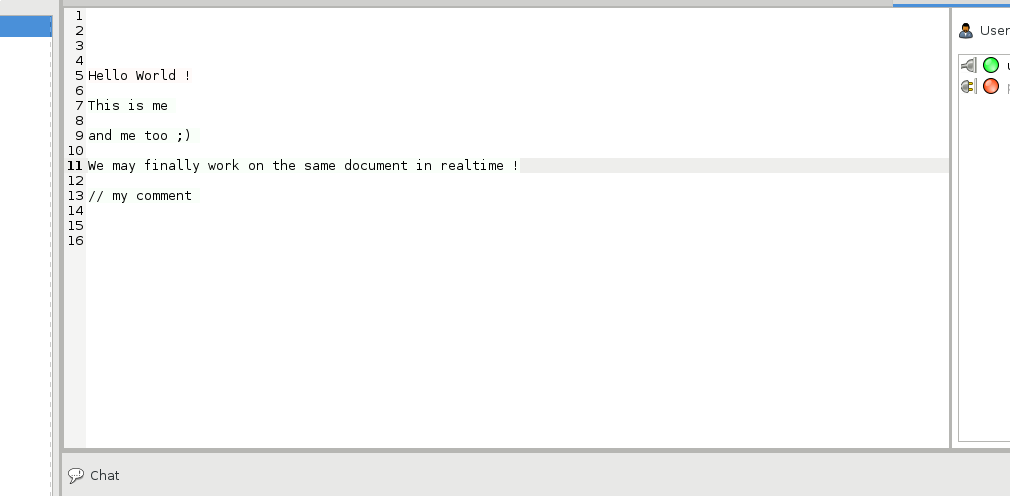

4: Mission Completed, just collaborate on same document.
4854


(admin: how to export this post i.e BBCODE + PNG to Zip File, in order to make an HowTo?)


Section #3 - (Less) Secured Viewer, any time and any where (Ebook,... over wifi).
1: If you aren't much worried, highly secured behind the wall of fire, you may run sshfs and apache2 to view it (over fuse).

Code:
pkg install apache2
Code:
sshfs  -o allow_other,uid=1000,gid=1000    192.168.10.150:/home/infinoted   /var/html/www/mycollaborative
Then on your ebook, tablet,... you can view over the html web server the edited files, refreshed every 20 seconds.

There is a possible viewer: collabeditviewer.php

Code:
<!DOCTYPE HTML>
<html>
<head>
<title>PHP File Reader</title>
</head>
<body>
<hr>
<h1> Basic PHP File Reader of Collaborative Document </h1>
<hr>
<?php
     $myfile = "mycollabeditweb/infinoted/data/mytest/Test-Notepad.InfText";
     $file = fopen( $myfile , "r");
     while(! feof($file))
     {
        $line = fgets($file);
        echo $line . "<br>";
     }
     fclose($file);
?>
<br/><br/>
</body>
</html>
Run a server behind a NAT Router (to protect from Internet).
Login with SSH on given port and establish a tunnel.
With the tunnel access, you can then see the port of the running gobby server. This is the key of everything.

Make sure to sshfs on a highly secured page / networking firewall, because high power is there (apache2).

Have Fun !!


Attachments

Last edited:

atomtm

New Member


Messages: 1

Secured Gobby Is the Best of the Best !!
No Third-Parties ! No Apple, Google, Microsoft, ... on board using up the web and spying on your documents !

Gobby over Putty is a good solution.
You can run headless a server for realtime collaborative multi-edit/multiuser with this following method.
There is a as well a chat option.
The editor Gobby has numerous features ; C, C++, Latex,... and even FORTRAN syntax are there for you !

Section #1 - Requirements & Service Installation -
- Machine Server #1: SSH Service (1) Gate:
You have a gate with SSH.
Code:
 pkg install ssh
IP of #1: IP with given port over the web (gate, $serverip)

- Machine Server #2: Gobby server Service (2) Collaborative:
Code:
[infinoted]
security-policy=require-tls
key-file=/home/infinoted/keys/infinoted.key
certificate-file=/home/infinoted/keys/infinoted.cert
root-directory=/home/infinoted/data
plugins=note-text;autosave

[autosave]
interval=20
IP of #2: IP with port 6523 of Gobby. (Collaborative service, $IP_GOBBY)
(here in this example: 192.168.10.150)
Compile and run the service at boot of BSD.

Section #2 - Methodology of Use -
1: ssh server with given ip $serverip
2: In Windows, starts putty

putty:
go into tunnel of putty.

source port: 6523
target : 192.168.10.150:6523
click on ADD

View attachment 4853

place into putty the ip of server and port.
RUN and login distant!

3: Once logged, after key ssh, login/pass, your are ready with your tunnel:

start gobby vers. 0.50. at least, since it is more compatible. Older versions had issue of compatibnitlity.
https://github.com/gobby/gobby/wiki/Download
http://releases.0x539.de/gobby/gobby-stable.exe

View attachment 4851
and enter distant connection: localhost:6523
the localhost is not local, but you will connect over ssh over the tunnel you created i.e. local 6523 | Wall of Fire | => | www | => | Wall of Fire (X) | => ssh Port: X => 192.168.10.150:6523
View attachment 4855



4: Mission Completed, just collaborate on same document.
View attachment 4854

(admin: how to export this post i.e BBCODE + PNG to Zip File, in order to make an HowTo?)


Section #3 - (Less) Secured Viewer, any time and any where (Ebook,... over wifi).
1: If you aren't much worried, highly secured behind the wall of fire, you may run sshfs and apache2 to view it (over fuse).

Code:
pkg install apache2
Code:
sshfs  -o allow_other,uid=1000,gid=1000    192.168.10.150:/home/infinoted   /var/html/www/mycollaborative
Then on your ebook, tablet,... you can view over the html web server the edited files, refreshed every 20 seconds.

There is a possible viewer: collabeditviewer.php

Code:
<!DOCTYPE HTML>
<html>
<head>
<title>PHP File Reader</title>
</head>
<body>
<hr>
<h1> Basic PHP File Reader of Collaborative Document </h1>
<hr>
<?php
     $myfile = "mycollabeditweb/infinoted/data/mytest/Test-Notepad.InfText";
     $file = fopen( $myfile , "r");
     while(! feof($file))
     {
        $line = fgets($file);
        echo $line . "<br>";
     }
     fclose($file);
?>
<br/><br/>
</body>
</html>

Make sure to sshfs on a highly secured page / networking firewall, because high power is there (apache2).

Have Fun !!
Is gobby only for private networks ? If not how do you configure client and server machine to connect through internet?

Thank you in advance

OP
OP
Spartrekus

Spartrekus

Aspiring Daemon

Reaction score: 113
Messages: 693

Secured Gobby Is the Best of the Best !!
No Third-Parties ! No Apple, Google, Microsoft, ... on board using up the web and spying on your documents !

Gobby over Putty is a good solution.
You can run headless a server for realtime collaborative multi-edit/multiuser with this following method.
There is a as well a chat option.
The editor Gobby has numerous features ; C, C++, Latex,... and even FORTRAN syntax are there for you !

Section #1 - Requirements & Service Installation -
- Machine Server #1: SSH Service (1) Gate:
You have a gate with SSH.
Code:
 pkg install ssh
IP of #1: IP with given port over the web (gate, $serverip)

- Machine Server #2: Gobby server Service (2) Collaborative:
Code:
[infinoted]
security-policy=require-tls
key-file=/home/infinoted/keys/infinoted.key
certificate-file=/home/infinoted/keys/infinoted.cert
root-directory=/home/infinoted/data
plugins=note-text;autosave

[autosave]
interval=20
IP of #2: IP with port 6523 of Gobby. (Collaborative service, $IP_GOBBY)
(here in this example: 192.168.10.150)
Compile and run the service at boot of BSD.

Section #2 - Methodology of Use -
1: ssh server with given ip $serverip
2: In Windows, starts putty

putty:
go into tunnel of putty.

source port: 6523
target : 192.168.10.150:6523
click on ADD

View attachment 4853

place into putty the ip of server and port.
RUN and login distant!

3: Once logged, after key ssh, login/pass, your are ready with your tunnel:

start gobby vers. 0.50. at least, since it is more compatible. Older versions had issue of compatibnitlity.
https://github.com/gobby/gobby/wiki/Download
http://releases.0x539.de/gobby/gobby-stable.exe

View attachment 4851
and enter distant connection: localhost:6523
the localhost is not local, but you will connect over ssh over the tunnel you created i.e. local 6523 | Wall of Fire | => | www | => | Wall of Fire (X) | => ssh Port: X => 192.168.10.150:6523
View attachment 4855



4: Mission Completed, just collaborate on same document.
View attachment 4854

(admin: how to export this post i.e BBCODE + PNG to Zip File, in order to make an HowTo?)


Section #3 - (Less) Secured Viewer, any time and any where (Ebook,... over wifi).
1: If you aren't much worried, highly secured behind the wall of fire, you may run sshfs and apache2 to view it (over fuse).

Code:
pkg install apache2
Code:
sshfs  -o allow_other,uid=1000,gid=1000    192.168.10.150:/home/infinoted   /var/html/www/mycollaborative
Then on your ebook, tablet,... you can view over the html web server the edited files, refreshed every 20 seconds.

There is a possible viewer: collabeditviewer.php

Code:
<!DOCTYPE HTML>
<html>
<head>
<title>PHP File Reader</title>
</head>
<body>
<hr>
<h1> Basic PHP File Reader of Collaborative Document </h1>
<hr>
<?php
     $myfile = "mycollabeditweb/infinoted/data/mytest/Test-Notepad.InfText";
     $file = fopen( $myfile , "r");
     while(! feof($file))
     {
        $line = fgets($file);
        echo $line . "<br>";
     }
     fclose($file);
?>
<br/><br/>
</body>
</html>

Make sure to sshfs on a highly secured page / networking firewall, because high power is there (apache2).

Have Fun !!
Man, I didn't remember this post. This was actually a cool post from me. Ideally documented to let a client/server for gobby.

But what about HERMES, just go for terminal, because you can run it fast, and all over any continents.


If you are willing to learn C programming, here a nice example to make your own, using sockets, to make client/server text editor.
