I bought a used drive Hitachi HDS724040ALE640 MJAOA3B0.

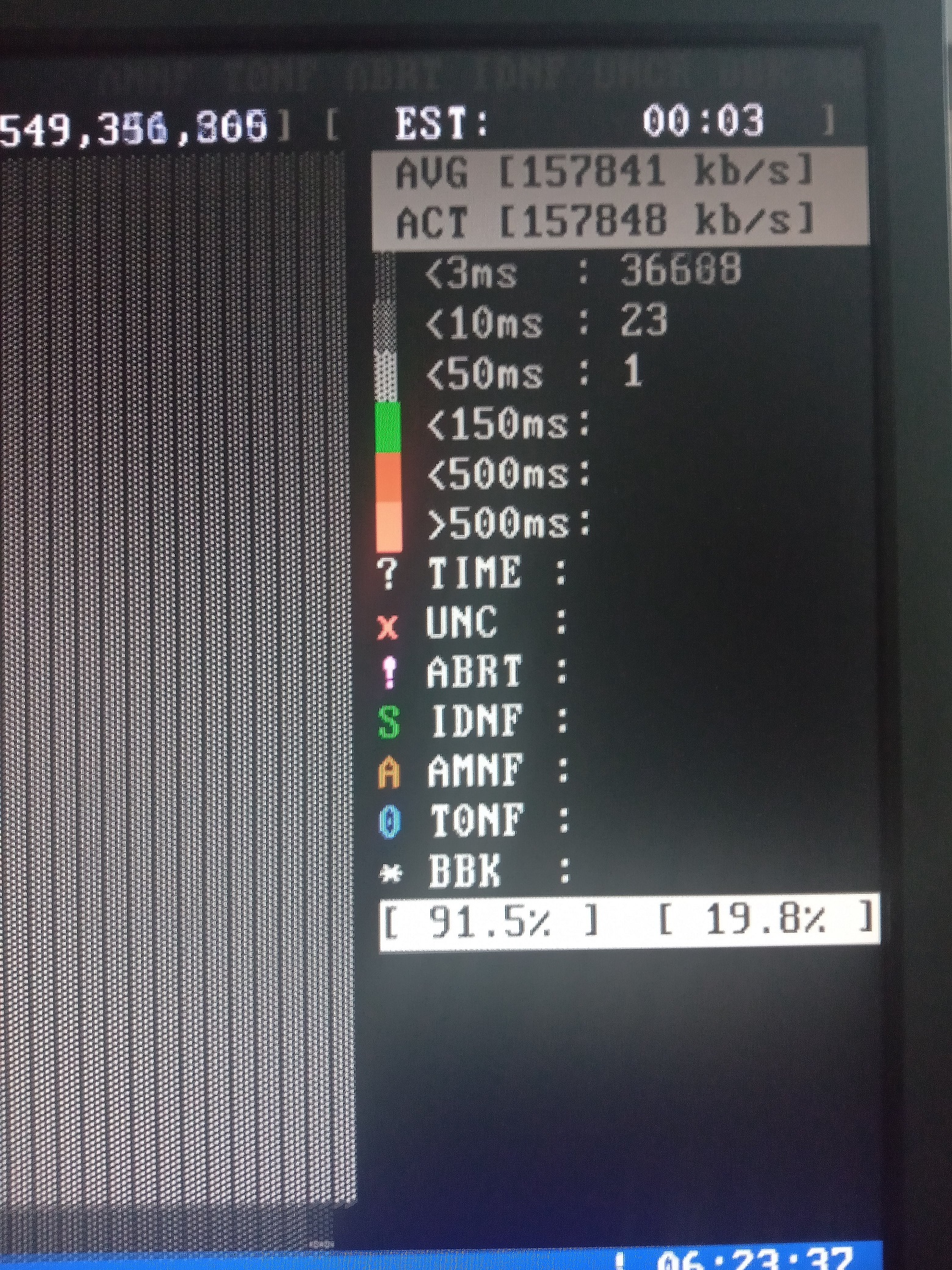

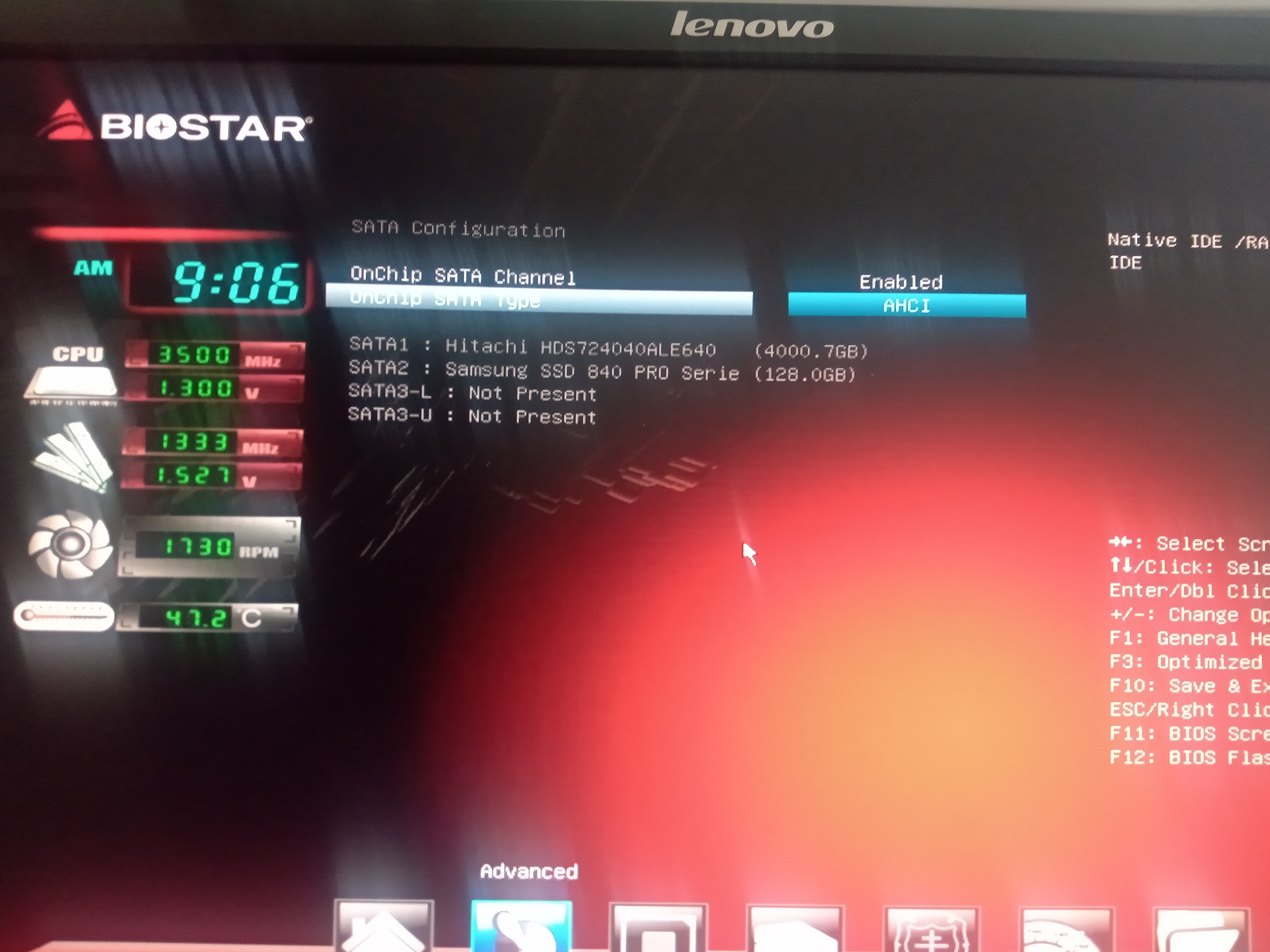

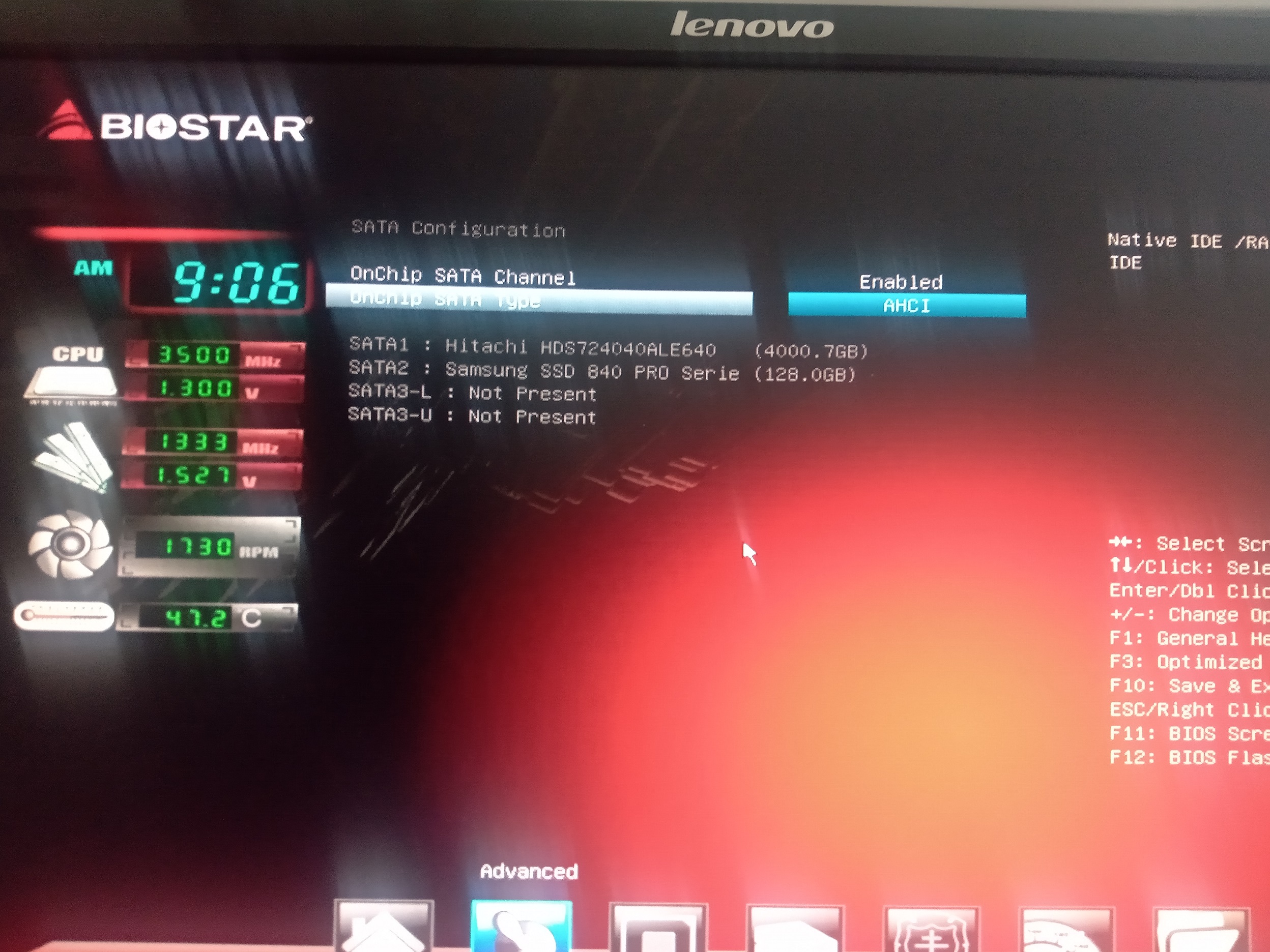

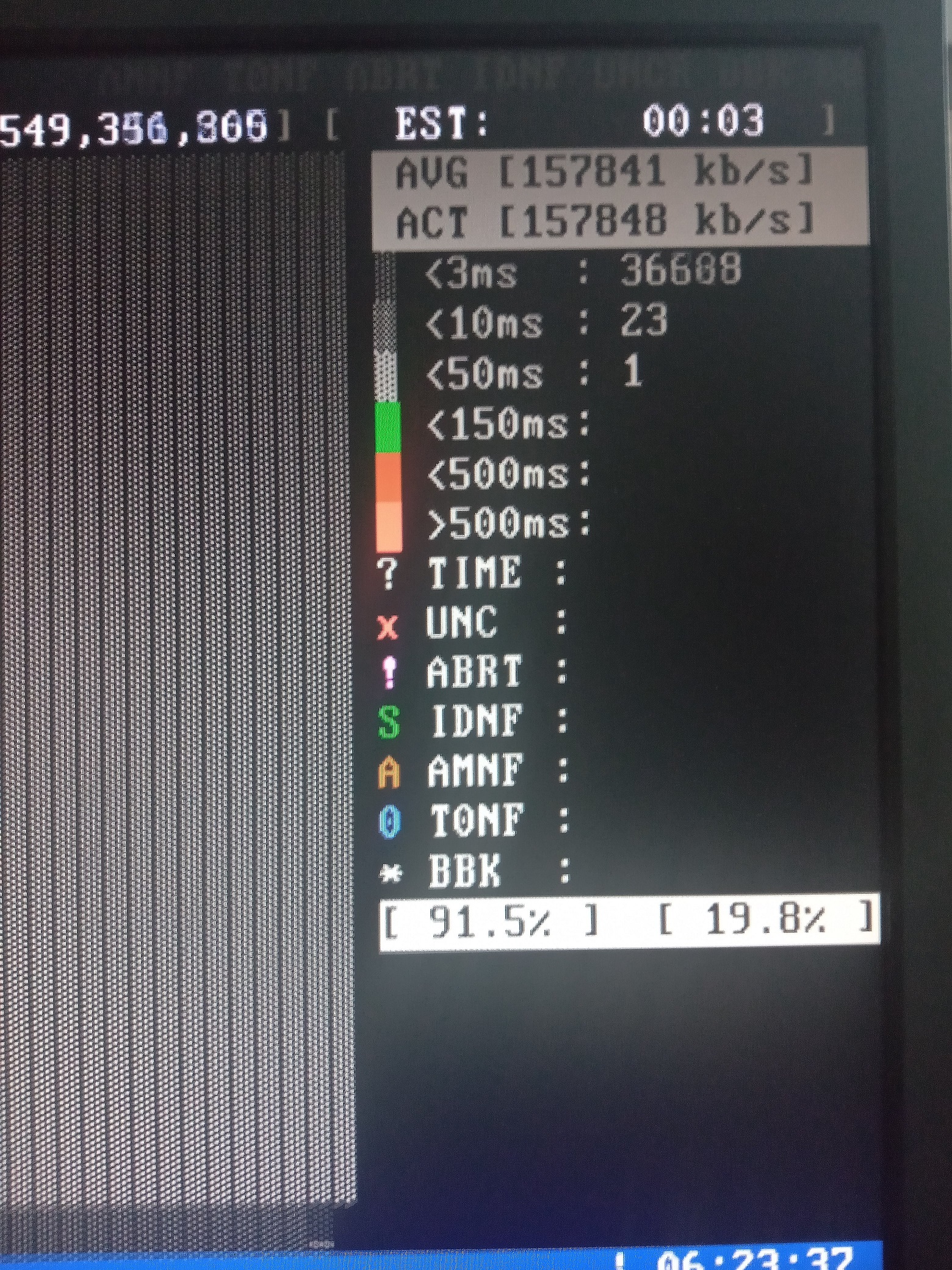

It has a capacity of 4TB. I hooked it up to the system, and it worked for ~one months. This morning I was ripping files from it, using Linux Mint, With Mint, he warned of possible damage of HDD. Also, when trying to rip from FreeBSD with samba, FreeBSD would shut down. Therefore, I used mint.I cleaned him up,using MHDD the speed on Linux reached 100MB/s. I hooked it up again. And there were problems. The installer did not want to create a partition there. So I created it manually. I added it to /etc/fstab and it throws consoles at startup, with the information that he cannot mount. Under windows, it appears to work normally. It is connected to Biostar A68MD PRO Micro ATX as Legacy IDE. It has a power supply Chieftec Smart Series, About which there are opinions that it is not the worst. I decided, to do the cleanup again on FreeBSD, and then mount it manually. The speed is 30kb/s:
It shows no problems on windows. Is there a chance to abuse it with some software or should I just accept defeat?
Code:
ada1 at ahcich3 bus 0 scbus3 target 0 lun 0
ada1: <Hitachi HDS724040ALE640 MJAOA3B0> ATA8-ACS SATA 3.x device
ada1: Serial Number PK1331PAH34G9S
ada1: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes)
ada1: Command Queueing enabled
ada1: 3815447MB (7814037168 512 byte sectors)
It has a capacity of 4TB. I hooked it up to the system, and it worked for ~one months. This morning I was ripping files from it, using Linux Mint, With Mint, he warned of possible damage of HDD. Also, when trying to rip from FreeBSD with samba, FreeBSD would shut down. Therefore, I used mint.I cleaned him up,using MHDD the speed on Linux reached 100MB/s. I hooked it up again. And there were problems. The installer did not want to create a partition there. So I created it manually. I added it to /etc/fstab and it throws consoles at startup, with the information that he cannot mount. Under windows, it appears to work normally. It is connected to Biostar A68MD PRO Micro ATX as Legacy IDE. It has a power supply Chieftec Smart Series, About which there are opinions that it is not the worst. I decided, to do the cleanup again on FreeBSD, and then mount it manually. The speed is 30kb/s:
Code:
root@Router:~ # dd if=/dev/zero of=/dev/ada1 status=progress
644608 bytes (645 kB, 630 KiB) transferred 21.007s, 31 kB/s
It shows no problems on windows. Is there a chance to abuse it with some software or should I just accept defeat?
Code:
root@Router:~ # smartctl -a /dev/ada1
smartctl 7.3 2022-02-28 r5338 [FreeBSD 13.1-RELEASE amd64] (local build)
Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Hitachi/HGST Deskstar 7K4000
Device Model: Hitachi HDS724040ALE640
Serial Number: PK1331PAH34G9S
LU WWN Device Id: 5 000cca 22bcf855d
Firmware Version: MJAOA3B0
User Capacity: 4,000,787,030,016 bytes [4.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.3/5319
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun May 29 22:10:02 2022 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: FAILED!
Drive failure expected in less than 24 hours. SAVE ALL DATA.
See vendor-specific Attribute list for failed Attributes.
General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 24) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 569) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000b 100 100 016 Pre-fail Always - 0
2 Throughput_Performance 0x0005 136 136 054 Pre-fail Offline - 81
3 Spin_Up_Time 0x0007 183 183 024 Pre-fail Always - 519 (Average 324)
4 Start_Stop_Count 0x0012 100 100 000 Old_age Always - 81
5 Reallocated_Sector_Ct 0x0033 001 001 005 Pre-fail Always FAILING_NOW 213
7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0
8 Seek_Time_Performance 0x0005 112 112 020 Pre-fail Offline - 38
9 Power_On_Hours 0x0012 100 100 000 Old_age Always - 808
10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 80
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 106
193 Load_Cycle_Count 0x0012 100 100 000 Old_age Always - 106
194 Temperature_Celsius 0x0002 122 122 000 Old_age Always - 49 (Min/Max 21/52)
196 Reallocated_Event_Count 0x0032 097 097 000 Old_age Always - 213
197 Current_Pending_Sector 0x0022 001 001 000 Old_age Always - 21080
198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0
SMART Error Log Version: 1
ATA Error Count: 233 (device log contains only the most recent five errors)
CR = Command Register [HEX]
FR = Features Register [HEX]
SC = Sector Count Register [HEX]
SN = Sector Number Register [HEX]
CL = Cylinder Low Register [HEX]
CH = Cylinder High Register [HEX]
DH = Device/Head Register [HEX]
DC = Device Command Register [HEX]
ER = Error register [HEX]
ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 233 occurred at disk power-on lifetime: 25 hours (1 days + 1 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 38 70 4d 21 0e Error: WP at LBA = 0x0e214d70 = 237063536
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
61 0b 08 40 89 01 40 00 21:23:22.076 WRITE FPDMA QUEUED
60 40 00 68 4d 21 40 00 21:23:22.076 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:23:22.075 READ LOG EXT
60 40 e8 68 4d 21 40 00 21:23:18.906 READ FPDMA QUEUED
60 40 e0 68 48 21 40 00 21:23:18.899 READ FPDMA QUEUED
Error 232 occurred at disk power-on lifetime: 25 hours (1 days + 1 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 38 70 4d 21 0e Error: UNC at LBA = 0x0e214d70 = 237063536
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 40 e8 68 4d 21 40 00 21:23:18.906 READ FPDMA QUEUED
60 40 e0 68 48 21 40 00 21:23:18.899 READ FPDMA QUEUED
60 40 d8 68 41 21 40 00 21:23:18.891 READ FPDMA QUEUED
61 40 d0 a8 4d 5b 40 00 21:23:18.868 WRITE FPDMA QUEUED
60 40 c8 68 39 21 40 00 21:23:18.860 READ FPDMA QUEUED
Error 231 occurred at disk power-on lifetime: 25 hours (1 days + 1 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 18 10 56 21 0e Error: UNC at LBA = 0x0e215610 = 237065744
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 40 d8 e8 55 21 40 00 21:10:00.013 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:10:00.013 READ LOG EXT
60 40 c8 e8 55 21 40 00 21:09:56.843 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:09:56.842 READ LOG EXT
60 40 b8 e8 55 21 40 00 21:09:53.672 READ FPDMA QUEUED
Error 230 occurred at disk power-on lifetime: 25 hours (1 days + 1 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 18 10 56 21 0e Error: UNC at LBA = 0x0e215610 = 237065744
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 40 c8 e8 55 21 40 00 21:09:56.843 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:09:56.842 READ LOG EXT
60 40 b8 e8 55 21 40 00 21:09:53.672 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:09:53.672 READ LOG EXT
61 40 a8 e8 8d ac 40 00 21:09:50.502 WRITE FPDMA QUEUED
Error 229 occurred at disk power-on lifetime: 25 hours (1 days + 1 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 18 10 56 21 0e Error: UNC at LBA = 0x0e215610 = 237065744
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 40 b8 e8 55 21 40 00 21:09:53.672 READ FPDMA QUEUED
2f 00 01 10 00 00 00 00 21:09:53.672 READ LOG EXT
61 40 a8 e8 8d ac 40 00 21:09:50.502 WRITE FPDMA QUEUED
61 40 a0 28 04 99 40 00 21:09:50.502 WRITE FPDMA QUEUED
61 40 98 68 05 9b 40 00 21:09:50.502 WRITE FPDMA QUEUED
SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed without error 00% 47539 -
# 2 Short offline Completed without error 00% 57 -
# 3 Extended offline Interrupted (host reset) 90% 10 -
# 4 Short offline Completed without error 00% 9 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
root@Router:~ #
