Solved PaloAlto PA-3060 Firewall FreeBSD stucks at boot

[alfa]

Hi i have PA-3060 paloalto firewall board with out of license and i don't want to waste because it's powerful

it has Portwell B216VG compute board
CPU: Intel(R) Celeron(R) CPU P4505 @ 1.87GHz (1862.04-MHz K8-class CPU)
Intel Ironlake (M) SVGA controller
4GB RAM

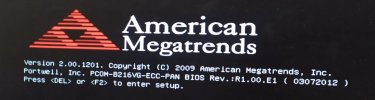

Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
Portwell, Inc. PCOM-B216VG-ECC-PAN BIOS Rev.:R1.00.E1 ( 03072012 )

Manufacturer locked bios access with supervisor password.
I tried to boot FreeBSD installed SSD and it will try to boot but stuck at line usbbus0

So what can be the problem in here.. I am asking you FreeBSD hackers Thanks for any help..

i take an panic once : panic: AP #1 (PHY# 4) failed! (full log in the attachment below)
and
Here is boot log:

/boot/kernel/kernel text=0x1585180 data=0x149748+0x4ce520 syms=[0x8+0x173ef8+0x8+0x18d29d]
/boot/entropy size=0x1000
/boot/kernel/pf.ko size 0x54948 at 0x229f000
Booting...
Copyright (c) 1992-2020 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 11.4-RELEASE #0: Thu Aug 26 11:38:13 +03 2021
    root@alfa:/usr/obj/usr/src/sys/ALFA amd64
FreeBSD clang version 10.0.0 (git@github.com:llvm/llvm-project.git llvmorg-10.0.0-0-gd32170dbd5b)
VT(vga): resolution 640x480
CPU: Intel(R) Celeron(R) CPU        P4505  @ 1.87GHz (1862.04-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x20655  Family=0x6  Model=0x25  Stepping=5
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x82e3bd<SSE3,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,POPCNT>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  VT-x: (disabled in BIOS) PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 4294967296 (4096 MB)
avail memory = 3881598976 (3701 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <ALASKA A M I>
FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs
FreeBSD/SMP: 1 package(s) x 2 core(s)
ioapic0 <Version 2.0> irqs 0-23 on motherboard
SMP: AP CPU #1 Launched!
Timecounter "TSC" frequency 1862044124 Hz quality 1000
random: entropy device external interface
kbd1 at kbdmux0
000.000029 [4213] netmap_init               netmap: loaded module
module_register_init: MOD_LOAD (vesa, 0xffffffff810200a0, 0) error 19
nexus0
vtvga0: <VT VGA driver> on motherboard
cryptosoft0: <software crypto> on motherboard
acpi0: <ALASKA A M I> on motherboard
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
cpu1: <ACPI CPU> on acpi0
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 550
Event timer "HPET1" frequency 14318180 Hz quality 440
Event timer "HPET2" frequency 14318180 Hz quality 440
Event timer "HPET3" frequency 14318180 Hz quality 440
Event timer "HPET4" frequency 14318180 Hz quality 440
Event timer "HPET5" frequency 14318180 Hz quality 440
Event timer "HPET6" frequency 14318180 Hz quality 440
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x408-0x40b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pcib0: _OSC returned error 0x10
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> irq 16 at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pci1: <processor> at device 0.0 (no driver attached)
vgapci0: <VGA-compatible display> port 0xf0a0-0xf0a7 mem 0xfe000000-0xfe3fffff,0xc0000000-0xcfffffff irq 16 at device 2.0 on pci0
agp0: <Intel Ironlake (M) SVGA controller> on vgapci0
agp0: aperture size is 256M, detected 32764k stolen memory
vgapci0: Boot video device
pci0: <simple comms> at device 22.0 (no driver attached)
em0: <Intel(R) PRO/1000 Network Connection 7.6.1-k> port 0xf040-0xf05f mem 0xfe600000-0xfe61ffff,0xfe629000-0xfe629fff irq 20 at device 25.0 on pci0
em0: Using an MSI interrupt
em0: Ethernet address: 00:90:fb:5e:92:db
em0: netmap queues/slots: TX 1/1024, RX 1/1024
ehci0: <Intel PCH USB 2.0 controller USB-B> mem 0xfe628000-0xfe6283ff irq 16 at device 26.0 on pci0
usbus0: EHCI version 1.0



[alfa]

Here is
FreeBSD 13.0-STABLE #0 stable/13-n249171-098780e8fe9 Log:

Loading kernel...
/boot/kernel/kernel text=0x181fe0 text=0xdea970 text=0x65b6ac data=0x140 data=0x1bcb78+0x442488 syms=[0x8+0x186f60+0x8+0x1a5a40]
Loading configured modules...
/boot/kernel/if_em.ko size 0x77758 at 0x212d000
/boot/kernel/if_igb.ko size 0x77758 at 0x21a5000
/boot/entropy size=0x1000
/boot/kernel/zfs.ko size 0x5b7448 at 0x221e000
/boot/kernel/if_msk.ko size 0x15098 at 0x27d6000
/etc/hostid size=0x25
/boot/kernel/cryptodev.ko size 0xa158 at 0x27ec000
---<<BOOT>>---
Copyright (c) 1992-2021 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 13.0-STABLE #0 stable/13-n249171-098780e8fe9: Thu Jan 27 02:37:04 UTC 2022
    root@releng3.nyi.freebsd.org:/usr/obj/usr/src/amd64.amd64/sys/GENERIC amd64
FreeBSD clang version 13.0.0 (git@github.com:llvm/llvm-project.git llvmorg-13.0.0-0-gd7b669b3a303)
VT(vga): resolution 640x480
module_register: cannot register pci/em from if_igb.ko; already loaded from if_em.ko
Module pci/em failed to register: 17
module_register: cannot register pci/igb from if_igb.ko; already loaded from if_em.ko
Module pci/igb failed to register: 17
module_register: cannot register pci/em from kernel; already loaded from if_em.ko
Module pci/em failed to register: 17
module_register: cannot register pci/igb from kernel; already loaded from if_em.ko
Module pci/igb failed to register: 17
module_register: cannot register pci/mskc from kernel; already loaded from if_msk.ko
Module pci/mskc failed to register: 17
module_register: cannot register mskc/msk from kernel; already loaded from if_msk.ko
Module mskc/msk failed to register: 17
module_register: cannot register msk/miibus from kernel; already loaded from if_msk.ko
Module msk/miibus failed to register: 17
CPU: Intel(R) Celeron(R) CPU        P4505  @ 1.87GHz (1862.07-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x20655  Family=0x6  Model=0x25  Stepping=5
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x82e3bd<SSE3,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,POPCNT>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  VT-x: (disabled in BIOS) PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 4294967296 (4096 MB)
avail memory = 3889471488 (3709 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <ALASKA A M I>
FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs
FreeBSD/SMP: 1 package(s) x 2 core(s)
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-23
Launching APs: 1
random: entropy device external interface
kbd1 at kbdmux0
vtvga0: <VT VGA driver>
aesni0: No AES or SHA support.
acpi0: <ALASKA A M I>
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 550
Event timer "HPET1" frequency 14318180 Hz quality 440
Event timer "HPET2" frequency 14318180 Hz quality 440
Event timer "HPET3" frequency 14318180 Hz quality 440
Event timer "HPET4" frequency 14318180 Hz quality 440
Event timer "HPET5" frequency 14318180 Hz quality 440
Event timer "HPET6" frequency 14318180 Hz quality 440
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x408-0x40b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> irq 16 at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pci1: <processor> at device 0.0 (no driver attached)
vgapci0: <VGA-compatible display> port 0xf0a0-0xf0a7 mem 0xfe000000-0xfe3fffff,0xc0000000-0xcfffffff irq 16 at device 2.0 on pci0
agp0: <Intel Ironlake (M) SVGA controller> on vgapci0
WARNING: Device "agp" is Giant locked and may be deleted before FreeBSD 14.0.
agp0: aperture size is 256M, detected 32764k stolen memory
vgapci0: Boot video device
pci0: <simple comms> at device 22.0 (no driver attached)
em0: <Intel(R) 82577LM> port 0xf040-0xf05f mem 0xfe600000-0xfe61ffff,0xfe629000-0xfe629fff irq 20 at device 25.0 on pci0
em0: EEPROM V0.12-3
em0: Using 1024 TX descriptors and 1024 RX descriptors
em0: Using an MSI interrupt
em0: Ethernet address: 00:90:fb:5e:92:db
em0: netmap queues/slots: TX 1/1024, RX 1/1024
ehci0: <Intel PCH USB 2.0 controller USB-B> mem 0xfe628000-0xfe6283ff irq 16 at device 26.0 on pci0
usbus0: EHCI version 1.0



[alfa]

solution:

disable all usb options from kernel conf and rebuild&install



[Jose]

And it boots now? Nice!



[alfa]

And it boots now? Nice!

Exactly! it booted.
But this board exist two seperate computing structure: one is portwell B216VG compute board(under the big black cooler seen below attachment), the other is on big green board.
There are two seperate RAM blocks one is on portwell the other is on green board.
FreeBSD sees only portwell board and HA1(igb0) HA2(igb1), MGMT(em0) ,CONSOLE ports.
The other six copper and fiber ports have Marvell Alaska series chips Which are FreeBSD didn't recognized.

I don't now anything about the green big one. Any help to activate it would be appreciated.

Here is IFCONFIG log:

em0: flags=8822<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
    options=481249b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM,LRO,WOL_MAGIC,VLAN_HWFILTER,NOMAP>
    ether 00:90:fb:5e:92:db
    media: Ethernet autoselect
    status: no carrier
    nd6 options=29<PERFORMNUD,IFDISABLED,AUTO_LINKLOCAL>
igb0: flags=8863<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
    options=4e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6,NOMAP>
    ether 24:0b:0a:00:c7:74
    inet 192.168.20.254 netmask 0xffffff00 broadcast 192.168.20.255
    media: Ethernet autoselect (1000baseT <full-duplex>)
    status: active
    nd6 options=29<PERFORMNUD,IFDISABLED,AUTO_LINKLOCAL>
igb1: flags=8822<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
    options=4e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6,NOMAP>
    ether 24:0b:0a:00:c7:75
    media: Ethernet autoselect
    status: no carrier
    nd6 options=29<PERFORMNUD,IFDISABLED,AUTO_LINKLOCAL>
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
    options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
    inet6 ::1 prefixlen 128
    inet6 fe80::1%lo0 prefixlen 64 scopeid 0x4
    inet 127.0.0.1 netmask 0xff000000
    groups: lo
    nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>

Here is DMIDECODE log :

PCOM-B216VG-ECC-P4505-PAN DMIDECODE LOGS - Pastebin.com

Pastebin.com is the number one paste tool since 2002. Pastebin is a website where you can store text online for a set period of time.

pastebin.com
