Hello,

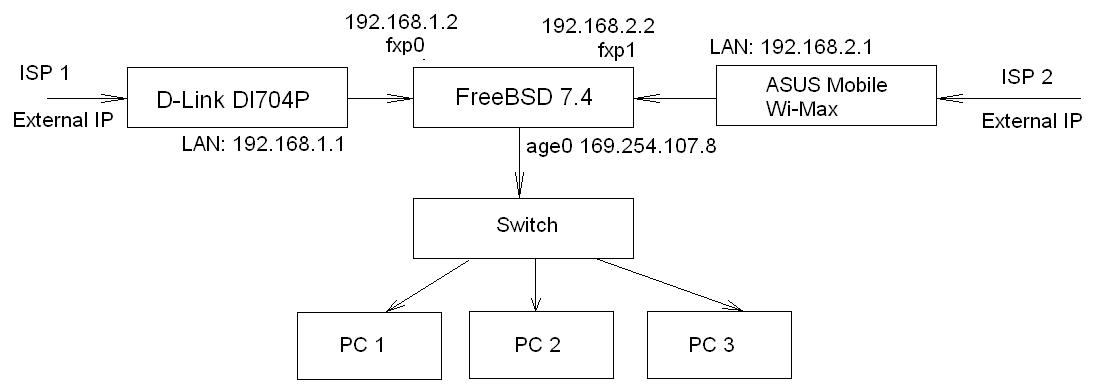

There is FreeBSD 7.4 server with 3 ethernet cards: fxp0, fxp1, age0 and two routers: D-Link DI-704P and ASUS Mobile WiMAX/Wi-Fi Center, with two different static external IP addresses. In attachment you can find network scheme.
At first, task was connect two ineternet channels and realize load-balancing between them. But, when I assembled all, I find out that server didn't work like gateway. In local network internet is not accessible. From local PC's all, that are located in outside of the age0 interface, is not accessible, except 192.168.1.2 and 192.168.2.2, but NOT 192.168.1.1 and 192.168.2.1 (LAN's of routers).
Thereby, now problem is to assemble gateway on the basis of FreeBSD 7.4. I temprorary not use fxp1 for simplify task and work with one internet channel but in LAN any internet addresses not accessible. I made tcpdump of fxp0 and age0 interfaces when ping -t 8.8.8.8 was running on Windows machine from 169.254.107.0/24. I found out that ICMP requests captured on age0 then they forward to fxp0 and go throuht NAT, address of src suscessfully modify and then go to router D-Link. I also used instead of D-Link router one of Windows machines with Wireshark and tried capture packets (IP address of this Windows machine I set to 192.168.1.1 like D-Link). Packets successfully was captured with right headers, so NAT working on FreeBSD. Tcpdump on fxp0 capture ICMP requests and ICMP replies. But on age0 tcpdump capture ONLY ICMP requests and packets don't reach from fxp0->age0 backwards!
This looks like NAT modify IP addresses only in one side. But I try pf+nat and ipfw+natd - the results is same. Server don't work with reverse forwarding. Firewall on Windows machine is turned off. From server I can ping any computer in LAN and Internet. Packets is lost inside server but how to find out where?
And I rebuilt kernel and world at last summer From FreeBSD 6.2->7.2->7.4 maybe this fact will helpful. Kernel options in attachment
Configs:
rc.conf
# netstat -rn
# ifconfig
pf.conf
There is FreeBSD 7.4 server with 3 ethernet cards: fxp0, fxp1, age0 and two routers: D-Link DI-704P and ASUS Mobile WiMAX/Wi-Fi Center, with two different static external IP addresses. In attachment you can find network scheme.
At first, task was connect two ineternet channels and realize load-balancing between them. But, when I assembled all, I find out that server didn't work like gateway. In local network internet is not accessible. From local PC's all, that are located in outside of the age0 interface, is not accessible, except 192.168.1.2 and 192.168.2.2, but NOT 192.168.1.1 and 192.168.2.1 (LAN's of routers).
Thereby, now problem is to assemble gateway on the basis of FreeBSD 7.4. I temprorary not use fxp1 for simplify task and work with one internet channel but in LAN any internet addresses not accessible. I made tcpdump of fxp0 and age0 interfaces when ping -t 8.8.8.8 was running on Windows machine from 169.254.107.0/24. I found out that ICMP requests captured on age0 then they forward to fxp0 and go throuht NAT, address of src suscessfully modify and then go to router D-Link. I also used instead of D-Link router one of Windows machines with Wireshark and tried capture packets (IP address of this Windows machine I set to 192.168.1.1 like D-Link). Packets successfully was captured with right headers, so NAT working on FreeBSD. Tcpdump on fxp0 capture ICMP requests and ICMP replies. But on age0 tcpdump capture ONLY ICMP requests and packets don't reach from fxp0->age0 backwards!
This looks like NAT modify IP addresses only in one side. But I try pf+nat and ipfw+natd - the results is same. Server don't work with reverse forwarding. Firewall on Windows machine is turned off. From server I can ping any computer in LAN and Internet. Packets is lost inside server but how to find out where?
And I rebuilt kernel and world at last summer From FreeBSD 6.2->7.2->7.4 maybe this fact will helpful. Kernel options in attachment
Configs:
rc.conf
Code:
# -- sysinstall generated deltas -- # Wed Oct 10 09:30:33 2007
# Created: Wed Oct 10 09:30:33 2007
# Enable network daemons for user convenience.
# Please make all changes to this file, not to /etc/defaults/rc.conf.
# This file now contains just the overrides from /etc/defaults/rc.conf.
usbd_enable="YES"
sshd_enable="YES"
#old conf
#ifconfig_age0="169.254.107.8/24"
#ifconfig_fxp0="169.254.107.8/24"
#ifconfig_fxp1="192.168.2.2/24"
#defaultrouter="169.254.107.1"
#new config
gateway_enable="YES"
#pf_rules="/etc/pf.conf"
ifconfig_age0="169.254.107.8/24"
ifconfig_fxp0="192.168.1.2/24"
ifconfig_fxp1="192.168.2.2/24"
defaultrouter="192.168.1.1"
#forward_sourceroute="YES"
#natd_enable="YES"
#natd_flags="-f /etc/natd.conf"
#pflog_enable="YES"
#encodinG
font8x14="cp866-8x14"
font8x16="cp866b-8x16"
font8x8="cp866-8x8"
keymap="ru.koi8-r"
scrnmap="koi8-r2cp866"
sendmail_enable="NONE"
sendmail_submit_enable="NO"
sendmail_outbound_enable="NO"
sendmail_msp_queue_enable="NO"
slapd_enable="YES"
slapd_flags=' -h "ldapi://%2fvar%2frun%2fopenldap%2fldapi/ ldap://0.0.0.0/ ldaps://0.0.0.0/"'
slapd_sockets="/var/run/openldap/ldapi"
clamav_freshclam_enable="YES"
clamav_clamd_enable="YES"
clamsmtpd_enable="YES"
postfix_enable="YES"
dovecot_enable="YES"
samba_enable="YES"
smbd_enable="YES"
nmbd_enable="YES"
winbindd_enable="YES"
hostname="server.company.ru"
dhcpd_enable="YES"
snmpd_enable="YES"
pf_enable="YES"
#nut_enable="YES"
named_enable="YES"
proftpd_enable="YES"
postgresql_enable="YES"
postgresql_data="/usr/local/pgsql/data"
postgresql_flags="-w -s -m fast"
postgrey_enable="YES"
# added by xorg-libraries port
local_startup="/usr/local/etc/rc.d"
healthd_enable="YES"
httpd_enable="YES"
rinetd_enable="YES"
apache_enable="YES"
munin_node_enable="YES"
openvpn_enable="YES"
#natd_enable="YES"
#natd_interface="fxp0"
#natd_flags=""
clamav_clamd_enable="YES"
clamav_freshclam_enable="YES"# netstat -rn
Code:
Routing tables
Internet:
Destination Gateway Flags Refs Use Netif Expire
default 192.168.1.1 UGS 0 1010 fxp0
127.0.0.1 127.0.0.1 UH 0 1266 lo0
169.254.106.0/24 169.254.106.2 UGS 0 0 tun0
169.254.106.2 169.254.106.1 UH 1 0 tun0
169.254.107.0/24 link#1 UC 0 0 age0
169.254.107.8 00:1b:fc:b9:5d:e4 UHLW 1 198 lo0
169.254.107.34 00:18:8b:7f:83:d3 UHLW 1 4 age0 1200
169.254.107.78 50:e5:49:3e:ad:61 UHLW 1 2362 age0 1197
169.254.107.79 50:e5:49:3e:ad:7c UHLW 1 12 age0 1048
169.254.107.255 ff:ff:ff:ff:ff:ff UHLWb 1 65 age0
192.168.1.0/24 link#2 UC 0 0 fxp0
192.168.1.1 00:17:9a:f6:34:5d UHLW 2 1 fxp0 961
192.168.1.255 ff:ff:ff:ff:ff:ff UHLWb 1 65 fxp0
192.168.2.0/24 link#3 UC 0 0 fxp1
192.168.2.255 ff:ff:ff:ff:ff:ff UHLWb 1 65 fxp1
Internet6:
Destination Gateway Flags Netif Expire
::1 ::1 UHL lo0
fe80::%lo0/64 fe80::1%lo0 U lo0
fe80::1%lo0 link#5 UHL lo0
ff01:5::/32 fe80::1%lo0 UC lo0
ff02::%lo0/32 fe80::1%lo0 UC lo0# ifconfig
Code:
age0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
options=4319b<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,VLAN_HWCSUM,TSO4,WOL_MCAST,WOL_MAGIC,VLAN_HWTSO>
ether 00:1b:fc:b9:5d:e4
inet 169.254.107.8 netmask 0xffffff00 broadcast 169.254.107.255
media: Ethernet autoselect (100baseTX <full-duplex>)
status: active
fxp0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
options=8<VLAN_MTU>
ether 00:02:a5:43:7b:fe
inet 192.168.1.2 netmask 0xffffff00 broadcast 192.168.1.255
media: Ethernet autoselect (100baseTX <full-duplex>)
status: active
fxp1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
options=8<VLAN_MTU>
ether 00:02:a5:43:7b:ff
inet 192.168.2.2 netmask 0xffffff00 broadcast 192.168.2.255
media: Ethernet autoselect (100baseTX <full-duplex>)
status: active
plip0: flags=108810<POINTOPOINT,SIMPLEX,MULTICAST,NEEDSGIANT> metric 0 mtu 1500
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5
inet6 ::1 prefixlen 128
inet 127.0.0.1 netmask 0xff000000
tun0: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500
inet 169.254.106.1 --> 169.254.106.2 netmask 0xffffffff
Opened by PID 1283pf.conf
Code:
#for NAT
nat on fxp0 from 169.254.107.0/24 to any -> 192.168.1.2/32
nat on fxp1 from 169.254.107.0/24 to any -> fxp1
I modified and restarted dhcp.conf, smb.conf.
