FreeBSD 11.1 doesn't connect to (wireless) network in Hyper-V

AAB

New Member


Messages: 6

#1
I'm a FreeBSD noob. There I said it.

Connecting to the wireless network seems a little problematic and confusing when using Hyper-V. I've tried a few commands to try to ascertain what is happening:

ifconfig wlan0 list scan

Returns "interface does not exist"

pciconf -lv | grep -B3 network | grep vendor

Returns "vendor = 'Digital Equipment Corporation'"

ifconfig

Returns information for interfaces de0 (hyper-v legacy interface), lo0 (standard loopback), and hn0 (hyper-v interface), but none of them have any real connectivity, although status is active for them.

I've also tinkered with the /etc/rc.conf, but the standard DHCP setup is not finding anything, and adding
Code:
wlans_ath0="wlan0"
following
ifconfig wlan0 create wlandevice ath0
doesn't help either.

It seems like FreeBSD needs to connect pseudo-directly to the wireless, which maybe requires some device loading (via kldload perhaps, or the existing driver that exists which seems to be ethernet only (no wireless) needs to be reconfigured somehow.

I don't recall precisely how hyper-v does the networking handoff, so I'm not certain what the next step would look like.

This image I'm using is not self-created, but pulled from https://download.freebsd.org/ftp/snapshots/VM-IMAGES/11.1-STABLE/i386/Latest/

I'm using a Win 2012 host.


SirDice

Administrator
Staff member
Administrator
Moderator

Thanks: 5,508
Messages: 25,688

#2
Your network interfaces are virtualized, the guest doesn't 'see' a wireless connection, it just has a regular ethernet interface. You have to bind that interface to your wireless interface in Hyper-V itself.


AAB

New Member


Messages: 6

#3
I appreciate the answer, but in Hyper-V the server instance is already set to bind to Wireless. I've created both legacy and network adapters in the hyper-v management interface for the VM Client, which is running FreeBSD 11.1 . Those adapters are set to bind to that wireless connection that the server is offering. And from my fairly regular use of hyper-v, it doesn't seem like the issue would be in the hyper-v itself, unless Hyper-v and FreeBSD are not compatible on some level, but the Microsoft documentation on the subject seems to imply there isn't an issue. Of course, the MS documentation is not very granular, IMHO.

Occasionally, you can have issues with more than one network adapter hogging the connection. However, no other VMs are running, and I generally expect at least one of the adapters to be good.


AAB

New Member


Messages: 6

#5
Is there some configuration step I'm missing? It seems to me that this should be working as is, but I'm still not getting an IPv4 address.



SirDice

Administrator
Staff member
Administrator
Moderator

Thanks: 5,508
Messages: 25,688

#6
Post the output of ifconfig.


SirDice

Administrator
Staff member
Administrator
Moderator

Thanks: 5,508
Messages: 25,688

#8
It looks like you tried a few things. Verify the VM's configuration in Hyper-V and make sure it only have one interface and that interface is bound to the correct physical interface of the host.


AAB

New Member


Messages: 6

#9
I removed the legacy network adapter. That's kind of a last ditch effort fall back anyway.



After starting back up:



This is present config now, but no connectivity out, although my host wireless is there and connected.


Attachments

SirDice

Administrator
Staff member
Administrator
Moderator

Thanks: 5,508
Messages: 25,688

#10
Well, it's doing something, your hn(4) interface now has an IP address. Now you need to configure the host to allow that traffic, enable NAT if needed, and generally make sure things are routed correctly. But that's all on the host side of things.


AAB

New Member


Messages: 6

#11
I removed the legacy network adapter. That's kind of a last ditch effort fall back anyway.

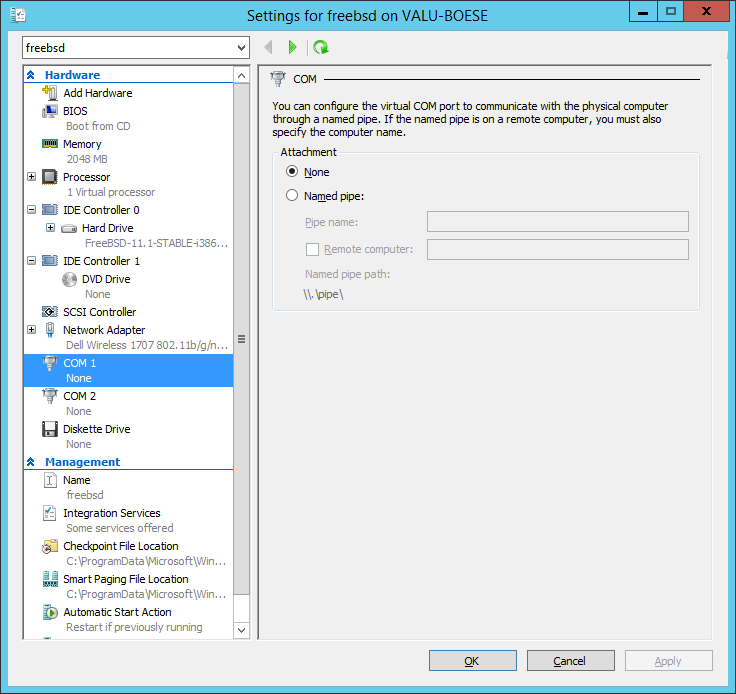

View attachment 4051

After starting back up:

View attachment 4052

This is present config now, but no connectivity out, although my host wireless is there and connected.
I'll take that back. Switching locations, the wireless connectivity is better. And having removed the other network config, I seem to be able to traceroute fine to source. I have to check a couple more things to be sure it's all good.
