Cacti - not draw graphs

L

lifefornazgul

Hello. The second day trying install cactus.
Trying to get the graphics from localhost (FreeBSD 9.0).
Today, at last, got a file *.rra (/ cacti/rra/). But the graphics are "empty." Apparently, 1) not working crontab every 5 minutes and 2) may not be properly configured Data Sources, though there default settings.
My config:

/var/cron/tabs/cacti
Code:
*/5 * * * * /usr/local/bin/php /usr/local/share/cacti/poller.php > /dev/null 2>&1


[cmd=]/usr/locale/bin/php /usr/locale/share/cacti/poller.php[/cmd]
Code:
08/22/2012 04:17:00 PM - POLLER: Poller[0] WARNING: Cron is out of sync with the Poller Interval!  The Poller Interval is '300' seconds, with a maximum of a '300' second Cron, but 506 seconds have passed since the last poll!OK u:0.03 s:0.02 r:0.69OK u:0.03 s:0.02 r:0.82OK u:0.03 s:0.02 r:0.94OK u:0.03 s:0.02 r:1.04cat: /proc/meminfo: No such file or directoryOK u:0.04 s:0.02 r:1.18cat: /proc/meminfo: No such file or directoryOK u:0.04 s:0.03 r:1.3008/22/2012 04:17:02 PM - SYSTEM STATS: Time:1.6020 Method:cmd.php Processes:1 Threads:N/A Hosts:2 HostsPerProcess:2 DataSources:6 RRDsProcessed:6


[cmd=]cat log/cacti.log[/cmd]
Code:
08/22/2012 04:17:00 PM - POLLER: Poller[0] WARNING: Cron is out of sync with the Poller Interval!  The Poller Interval is '300' seconds, with a maximum of a '300' second Cron, but 506 seconds have passed since the last poll!08/22/2012 04:17:02 PM - CMDPHP: Poller[0] Host[1] DS[24] WARNING: Result from CMD not valid.  Partial Result: 1min: 5min: 1008/22/2012 04:17:02 PM - CMDPHP: Poller[0] Host[1] DS[23] WARNING: Result from CMD not valid.  Partial Result: U08/22/2012 04:17:02 PM - CMDPHP: Poller[0] Host[1] DS[22] WARNING: Result from CMD not valid.  Partial Result: U08/22/2012 04:17:02 PM - SYSTEM STATS: Time:1.6020 Method:cmd.php Processes:1 Threads:N/A Hosts:2 HostsPerProcess:2 DataSources:6 RRDsProcessed:6
Rights to the folder and log rra made ​​777. Not help any way.

I don't think you have configured your data sources correctly. It's probably using some Linux command that's not understood by FreeBSD.
Code:
WARNING: Result from CMD not valid

But, that commands configured by default =(

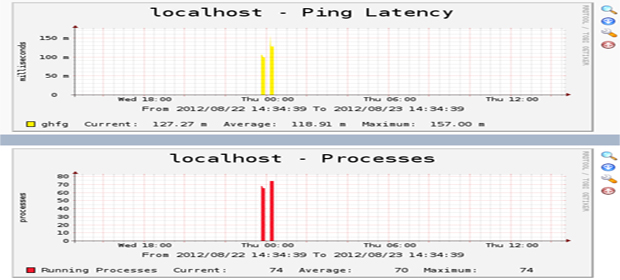

By the way, this morning opened and I saw these graphs here


Attachments

  • 1.jpg
    96.7 KB · Views: 1,855
Ah, yes. I remember now, played with cacti a long time ago. It does indeed take a while for any graphs to appear. It needs to collect enough data first.

Remember it collects data every 5 minutes, so it needs at least a good 15 minutes to get 3 data points.

my crontab successfully uses
Code:
php poller.php
, every 5 mins, but the graphics are not drawn.

If a record Cron
Code:
php poller.php > /dev/null/ 2&1
(as written in the manual) that
Cactus wrote in a post error
Code:
cannot create /dev/null: not a directory
what does it means?

and another error in "httpd-error.log"

Code:
ERROR: parameter '#FFF200FF' does not represent a number in line AREA:#FFF200FF:

ERROR: parameter '#FFF200FF' does not represent a number in line AREA:#FFF200FF:

ERROR: parameter '#FFF200FF' does not represent a number in line AREA:#FFF200FF:

ERROR: parameter '#FFF200FF' does not represent a number in line AREA:#FFF200FF:

lifefornazgul said:
If a record Cron
Code:
php poller.php > /dev/null/ 2&1
(as written in the manual) that
Cactus wrote in a post error
Code:
cannot create /dev/null: not a directory
what does it means?
Click to expand...
There shouldn't be a / at the end of /dev/null. It refers to null(4).

SirDice, u are the greatest one)

After two days of effort, I finally saw the graphics.
Thank you very much

Hope to see you in my threads in the future)
