Asus TUF Gaming F15 (

L

latinu

Hello. Can someone help me with configuring FreeBSD for my laptop. Unfortunately, after running "hw-probe" it seems that the processor is not recognized and bluetooth is not recognized. I don't want to give up freebsd for another operating system
  • 12th Gen Intel Core i7 12700H
  • 14 Cores, 20 Threads
  • 16 GB DDR5 RAM
  • 512 GB SSD
  • 4 GB NVIDIA GeForce RTX 3050-Ti
  • 15.6 inches, 1920 x 1080 pixels

I doubt the CPU isn't recognized. The only thing that might not work is that the 12th gen CPUs have different types of cores and the process scheduler will treat P and E cores exactly the same. It'll work but it won't be optimal (background tasks might get scheduled on a P core and your foreground tasks might get scheduled to an E core).

The GeForce RTX-3050 should work just fine with the x11/nvidia-driver.

Bluetooth might be the only thing not working. FreeBSD has rather poor bluetooth support. Can't tell what wifi chip it has though, that might be the other issue. Some Intel Wifi 6 chipsets are supported (but don't run on their 'full' speed yet).

I run an MSI gaming DESKTOP-PC with NVIDIA RTX-2060 ; CPU - 12th Gen Intel Core i5.
FreeBSD works fine.
What happens when you boot freebsd from an usb stick ?. Which errors do you see ?
An app to see some cpu info,

FreshPorts -- sysutils/lscpu: Display information about the CPU architecture

lscpu gathers CPU architecture information about the current CPU. The command output is optimized for parsing or for easy readability by humans. The information includes, for example, the number of CPUs, threads, cores, and sockets. There is also information about the CPU caches, family, model...
www.freshports.org www.freshports.org

I have run hw-probe and I don't know if my configuration is correct for the desktop, also when I compile for example "vscode" from the ports all the processors are at 100%
can you advise me?


Attachments

  • Screenshot at 2023-01-31 18-58-52.png
    Screenshot at 2023-01-31 18-58-52.png
    84.4 KB · Views: 128
  • Screenshot at 2023-01-31 18-59-20.png
    Screenshot at 2023-01-31 18-59-20.png
    117.3 KB · Views: 132
  • Screenshot at 2023-01-31 19-05-01.png
    Screenshot at 2023-01-31 19-05-01.png
    72.5 KB · Views: 117
  • HW probe of ASUSTek ASUS TUF Gaming F15 ... #484e2176b2.pdf
    HW probe of ASUSTek ASUS TUF Gaming F15 ... #484e2176b2.pdf
    570.5 KB · Views: 139
latinu said:
Hello. Can someone help me with configuring FreeBSD for my laptop. Unfortunately, after running "hw-probe" it seems that the processor is not recognized and bluetooth is not recognized. I don't want to give up freebsd for another operating system
  • 12th Gen Intel Core i7 12700H
  • 14 Cores, 20 Threads
  • 16 GB DDR5 RAM
  • 512 GB SSD
  • 4 GB NVIDIA GeForce RTX 3050-Ti
  • 15.6 inches, 1920 x 1080 pixels
Click to expand...
Can you run hw-probe -all -upload and send us the link, please?

latinu said:
I have run hw-probe and I don't know if my configuration is correct for the desktop, also when I compile for example "vscode" from the ports all the processors are at 100%
can you advise me?
Click to expand...
Don't send pictures please, it is impossible to quote it. You can send the configs as text inside code blocks, it is way better to read and quote if need it.

I followed the steps from here to slow down the ventilation

Optimizing FreeBSD Power Consumption on Modern Intel Laptops - Neel Chauhan

My current FreeBSD laptop is a 2020 14" HP Spectre x360, which uses Intel’s 11th Gen CPU and “Evo” platform, although I previously also had the 13" 2020 version with a similar setup (but lacked working audio on non-Windows). This article isn’t specific to HP: your shiny-new Lenovo ThinkPad, Dell...
www.neelc.org

latinu said:
Thanks..
Click to expand...
I meant like that:

Code:
$ cat /etc/sysctl.conf
# $FreeBSD$
#
#  This file is read when going to multi-user and its contents piped thru
#  ``sysctl'' to adjust kernel values.  ``man 5 sysctl.conf'' for details.
#

# Security
# Uncomment this to prevent users from seeing information about processes that
# are being run under another UID.
security.bsd.see_other_uids=0
security.bsd.see_other_gids=0
security.bsd.see_jail_proc=0
security.bsd.unprivileged_read_msgbuf=0
security.bsd.unprivileged_proc_debug=0
## Kernel Hardening
kern.randompid=1
kern.elf32.aslr.enable=1
kern.elf32.aslr.pie_enable=1
kern.elf32.aslr.honor_sbrk=0
kern.elf64.aslr.enable=1
kern.elf64.aslr.pie_enable=1
kern.elf64.aslr.honor_sbrk=0
vfs.zfs.min_auto_ashift=12
###############################################
# Boost performance
kern.sched.preempt_thresh=224
kern.ipc.shm_allow_removed=1
kern.ipc.shmmax=67108864
kern.ipc.shmall=32768
kern.threads.max_threads_per_proc=4096
#kern.sched.slice=5
kern.coredump=0
###############################################
# FUSEfs Samba
vfs.usermount=1
###############################################
# Network
net.local.stream.recvspace=65536
net.local.stream.sendspace=65536
net.inet.ip.forwarding=1
net.inet.ip.random_id=1
###############################################
# Suspend on lid close
hw.acpi.lid_switch_state=S3

EDIT: my /etc/sysctl.conf was just a example. You can find the tutorial for this in this thread:
forums.freebsd.org

Formatting Guidelines

1. Please write as clearly as possible. Use English punctuation and capitalization, and avoid abbreviating things. This helps to improve the clarity of messages and make problems easier to solve. 2. Use BBCode formatting tags. As with punctuation, these tags make messages easier to read...
forums.freebsd.org forums.freebsd.org

And the explanation here:
forums.freebsd.org

The value of format tags

These forums use format tags like , , [CODE], and extensively. It is not because we are just sticklers for detail (well, okay, that too), but also because these tags make the messages easier to read and add useful extra information for the reader. For example: Without tags: Set...
forums.freebsd.org forums.freebsd.org

this is my config files:

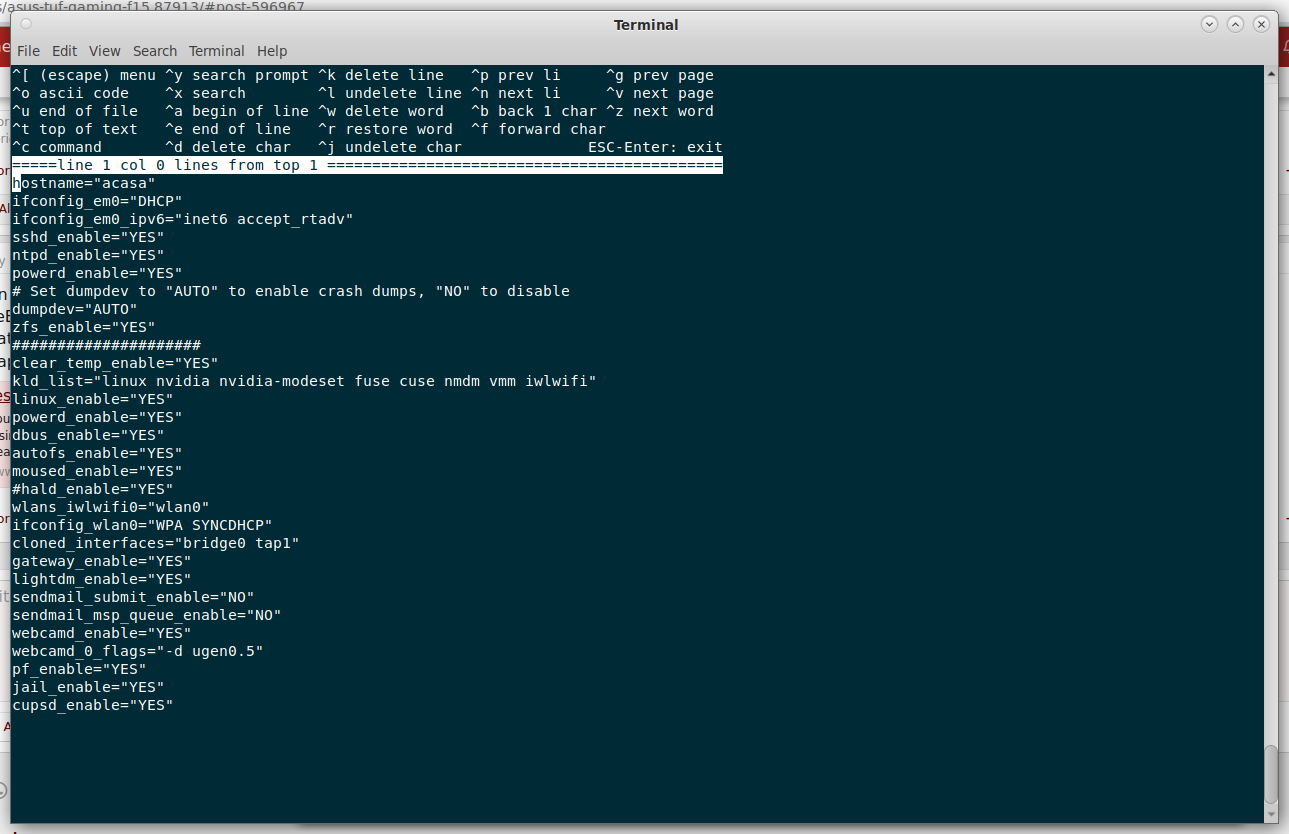

/etc/rc.conf:
hostname="acasa"
ifconfig_em0="DHCP"
ifconfig_em0_ipv6="inet6 accept_rtadv"
sshd_enable="YES"
ntpd_enable="YES"
powerd_enable="YES"
# Set dumpdev to "AUTO" to enable crash dumps, "NO" to disable
dumpdev="AUTO"
zfs_enable="YES"
#####################
clear_temp_enable="YES"
kld_list="linux nvidia nvidia-modeset fuse cuse nmdm vmm iwlwifi"
linux_enable="YES"
powerd_enable="YES"
dbus_enable="YES"
autofs_enable="YES"
moused_enable="YES"
#hald_enable="YES"
wlans_iwlwifi0="wlan0"
ifconfig_wlan0="WPA SYNCDHCP"
cloned_interfaces="bridge0 tap1"
gateway_enable="YES"
lightdm_enable="YES"
sendmail_submit_enable="NO"
sendmail_msp_queue_enable="NO"
webcamd_enable="YES"
webcamd_0_flags="-d ugen0.6"
pf_enable="YES"
jail_enable="YES"
cupsd_enable="YES"
smartd_enable="YES"

/boot/loader.conf
ern.geom.label.disk_ident.enable="0"
kern.geom.label.gptid.enable="0"
cryptodev_load="YES"
zfs_load="YES"
##############
linux_load="YES"
nvidia_load="YES"
nvidia_name="nvidia"
nvidia_modeset_load="YES"
nvidia_modeset_name="nvidia-modeset"
##############
machdep.hwpstate_pkg_ctrl=0
###############
sound_load="YES"
snd_hda_load="YES"
###############
cuse_load="YES"
##############
vmm_load="YES"
nmdm_load="YES"
if_tap_load="YES"
hw.vmm.topology.cores_per_package=4
###################
ng_ubt_load="YES"

/etc/sysctl.conf
# $FreeBSD$
#
# This file is read when going to multi-user and its contents piped thru
# ``sysctl'' to adjust kernel values. ``man 5 sysctl.conf'' for details.
#

# Uncomment this to prevent users from seeing information about processes that
# are being run under another UID.
#security.bsd.see_other_uids=0
vfs.zfs.min_auto_ashift=12

dev.hwpstate_intel.0.epp=50
dev.hwpstate_intel.1.epp=50
dev.hwpstate_intel.2.epp=50
dev.hwpstate_intel.3.epp=50
dev.hwpstate_intel.4.epp=50
dev.hwpstate_intel.5.epp=50
dev.hwpstate_intel.6.epp=50
dev.hwpstate_intel.7.epp=50
dev.hwpstate_intel.8.epp=50
dev.hwpstate_intel.9.epp=50
dev.hwpstate_intel.10.epp=50
dev.hwpstate_intel.11.epp=50
dev.hwpstate_intel.12.epp=50
dev.hwpstate_intel.13.epp=50
dev.hwpstate_intel.14.epp=50
dev.hwpstate_intel.15.epp=50
dev.hwpstate_intel.16.epp=50
dev.hwpstate_intel.17.epp=50
dev.hwpstate_intel.18.epp=50
dev.hwpstate_intel.19.epp=50

latinu said:
I have run hw-probe and I don't know if my configuration is correct for the desktop, also when I compile for example "vscode" from the ports all the processors are at 100%
can you advise me?
Click to expand...
electron,chromium,iridum&ungoogled-chromium are the "big ports".
I just have myself a problem with electron (vscode) after 10 hours compiling. So it's normal.
Sometimes some tuning is needed as how much you do in memory.
I'll try later this week some other tuning. I let you know.

latinu said:
Code:
nvidia_load="YES"
nvidia_name="nvidia"
nvidia_modeset_load="YES"
nvidia_modeset_name="nvidia-modeset"
Click to expand...
You can remove these. I've seen them before, I think they're mentioned in the documentation from NVidia. They're not correct though. You only need nvidia-modeset in kld_list in /etc/rc.conf. Nothing more is needed to load the required kernel module(s).

latinu said:
also when I compile for example "vscode" from the ports all the processors are at 100%
can you advise me?
Click to expand...
Yes, use packages. Especially at first. Building from ports is cool but can take a really long time, certainly big ports with lots of dependencies (each one would have to be built too). You should be happy if you have all cores blazing away at 100%, it means its running at full capacity, doing what needs to be doing. Building things from source requires a lot of resources. The more and faster resources you can throw at it, the quicker it'll be done. Still, start with packages. Those are precompiled ports, you only have to install them. Save a lot of time.

Alain De Vos said:
Electron (dependency of vscode), is really really big.
CPU at 100% means compiling is at full speed ( a good thing).
Click to expand...
Thanks Alain De Vos.at the moment I have this configuration. What is found about nvidia in /boot/load.conf results after compiling the nvidia drivers according to the official site. Can you advise me with some other settings for desktop?

florin@home:~ $ cat /etc/rc.conf
clear_tmp_enable="YES"
sendmail_enable="NO"
hostname="home"
ifconfig_em0="DHCP"
ifconfig_em0_ipv6="inet6 accept_rtadv"
sshd_enable="YES"
moused_enable="YES"
ntpd_enable="YES"
powerd_enable="YES"
# Set dumpdev to "AUTO" to enable crash dumps, "NO" to disable
dumpdev="AUTO"
zfs_enable="YES"
############################
clear_tmp_enable="YES"
kld_list="linux nvidia-modeset cpuctl fuse nmdm vmm cuse iwlwifi ng_ubt"
linux_enable="YES"
nvidia_xorg_enable="YES"
microcode_update_enable="YES"
dbus_enable="YES"
########################
sound_load="YES"
snd_hda_load="YES"
webcamd_enable="YES"
ng_ubt_load="YES"
hald_enable="YES"
wlans_iwlwifi0="wlan0"
ifconfig_wlan0="WPA SYNCDHCP"
cloned_interfaces="bridge0 tap1"
gateway_enable="YES"
lightdm_enable="YES"
vm_enable="YES"
jail_enable="YES"
autofs_enable="YES"
jackd_enable="YES"
jackd_user="florin"
jackd_rtprio="YES"
jackd_args="-R -doss -r48000 -p1024 -n1 -w16 \
--capture /dev/dsp0 --playback /dev/dsp0"
smartd_enable="YES"
florin@home:~ $ cat /boot/loader.conf
kern.geom.label.disk_ident.enable="0"
kern.geom.label.gptid.enable="0"
cryptodev_load="YES"
zfs_load="YES"
nvidia_load="YES"
nvidia_name="nvidia"
nvidia_modeset_load="YES"
nvidia_modeset_name="nvidia-modeset"

latinu said:
PCH HECI Controller
Click to expand...
That's not going to matter much. It's a way to 'remote' control your laptop, shouldn't be needed for actually operating the thing itself.

Host Embedded Controller Interface - Wikipedia

en.wikipedia.org en.wikipedia.org

latinu said:
AX201 Bluetooth are not detected
Click to expand...
AX201 is Wifi 6 and bluetooth. It's quite common nowadays to put both Wifi and bluetooth on the same controller chip. They're both wireless networks operating on similar frequencies (2.4GHz band). It makes sense to put them on the same controller instead of using two separate chips for it. What version did you try? 13.1? You might want to try the 13.2 beta, it should be released in a couple of days.
www.freebsd.org

FreeBSD 13.2 Release Process

FreeBSD is an operating system used to power modern servers, desktops, and embedded platforms.
www.freebsd.org www.freebsd.org

It's possible only the Wifi part of the AX201 is supported, but not the bluetooth part.
